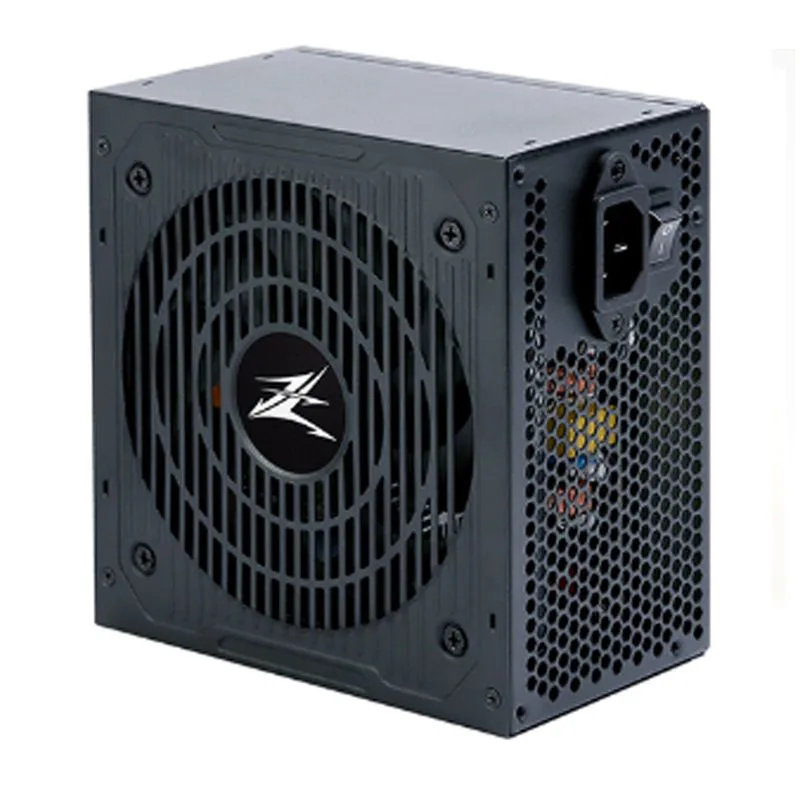

ZALMAN MEGAMAX 600W V2 80 PLUS STANDARD

Brand Zalman
Model
MEGAMAX ZM600-TXII

Type
Intel ATX 12V ver 2.31

Power Capacity
600W

Input Voltage
200-240 VAC

Input Current
5A

Input Frequency Range
50-60 Hz

Operating Temperature
10-45 °C

Fan Size
120mm

Efficiency
Max 86% @ 220 VAC, Typical Load

MTBF
100,000Hours

Safety Regulation
KC, CE, CB, RoHS, EAC

Protection
OPP/OVP/UVP/SCP

Certification
80 PLUS WHITE

Modular
Non Modular

ATX Main Connector
(20+4 Pin) x 1 Connector

CPU Power Connector
(4+4 Pin) x 1 Connector
(8 Pin) x 1 Connector

PCIe Power Connector
(6+2 Pin) x 2 Connector

SATA Power Connector
6 Connector

Peripheral Power Connector
4 Connector

Floppy Power Connector
1 Connector

RGB Power Connector
None

PSU Length
140mm

Dimension (W x D x H) : 15.00 x 14.00 x 8.60 cm
Net Weight 1.68 KG
Package Dimension (W x D x H) : 18.00 x 28.50 x 10.00 cm
Gross Weight 1.80 KG
Volume 5,130.00 cm3

BRAND	ZALMAN
WATTS	600 W
