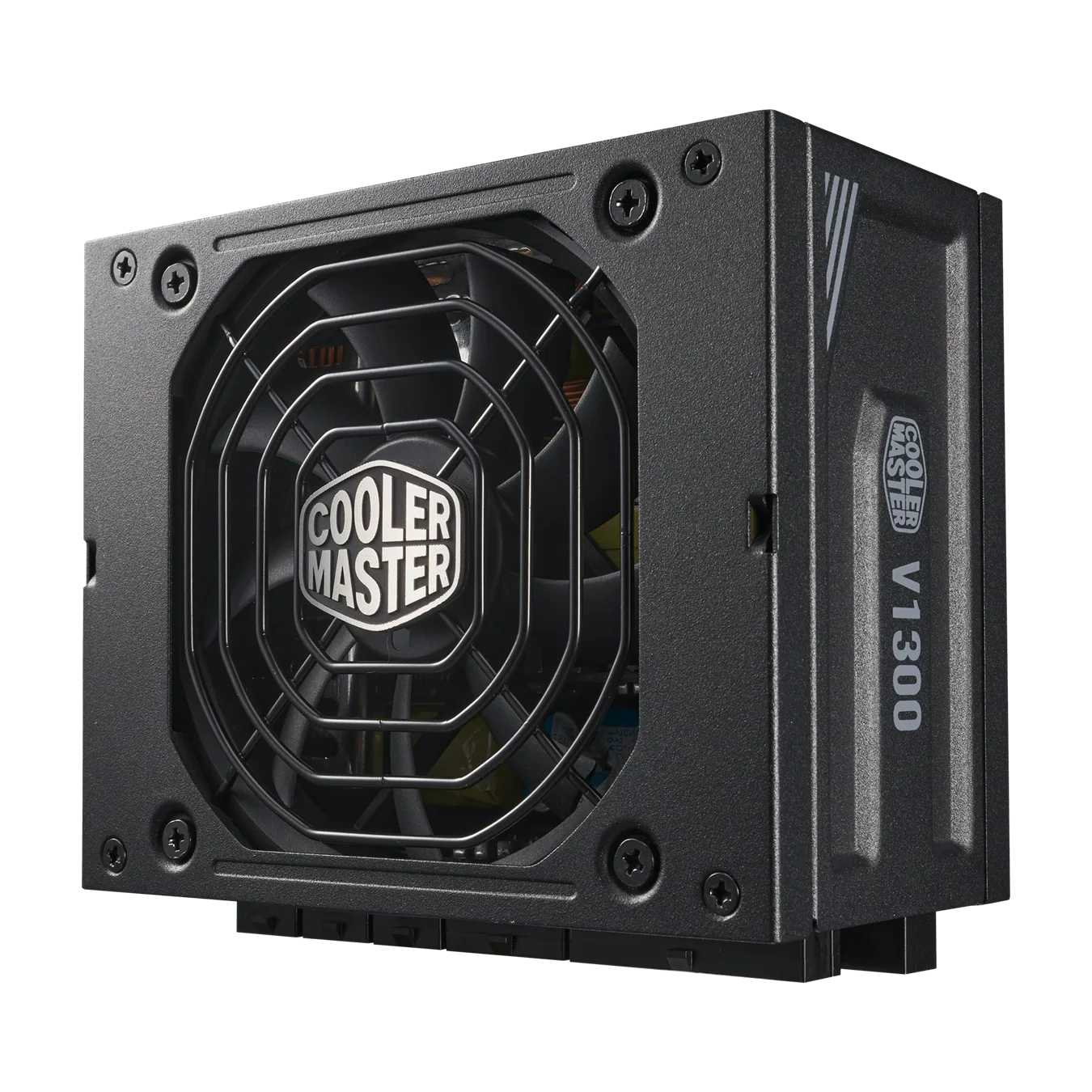

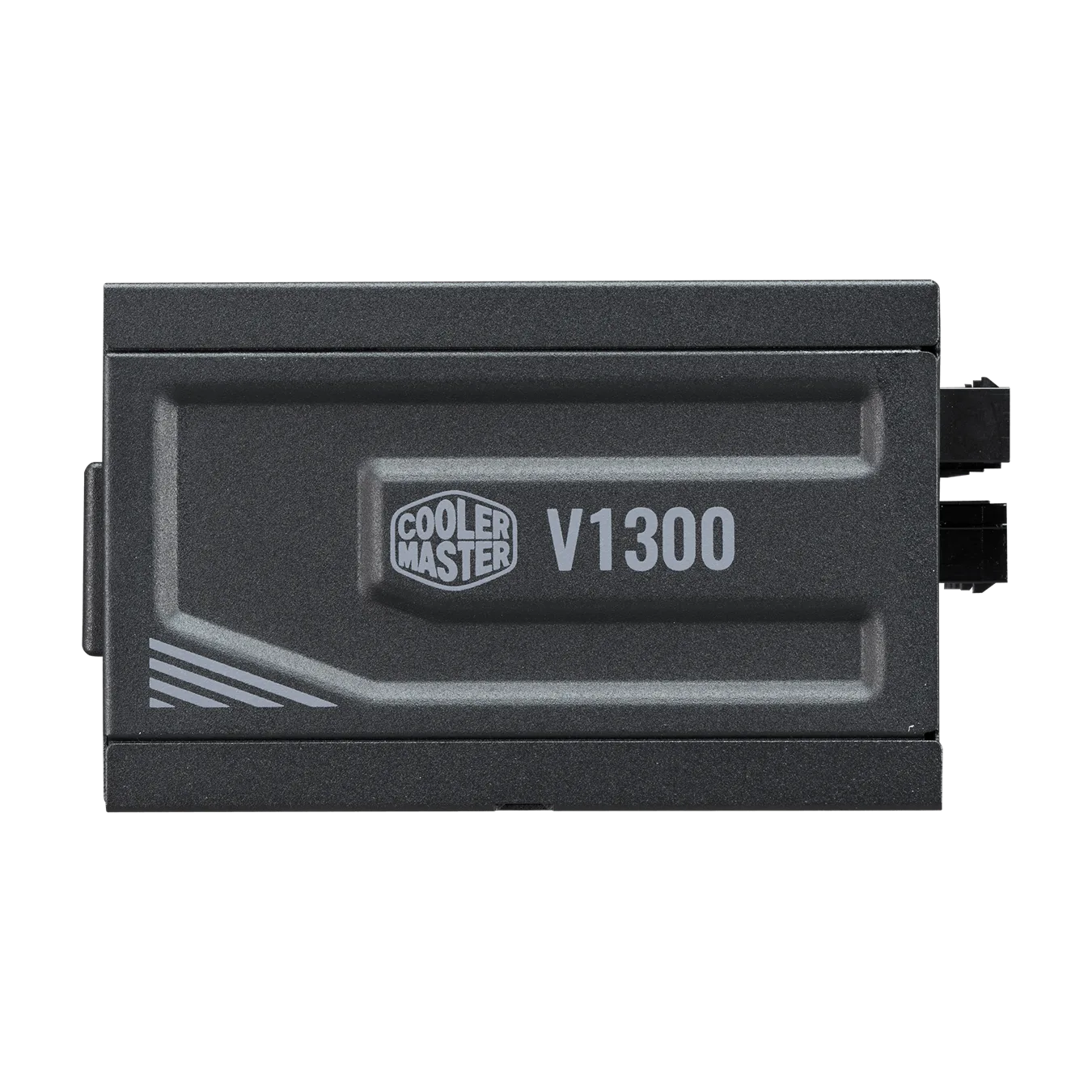

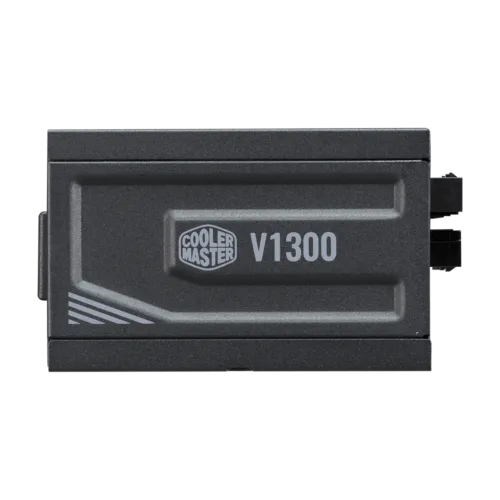

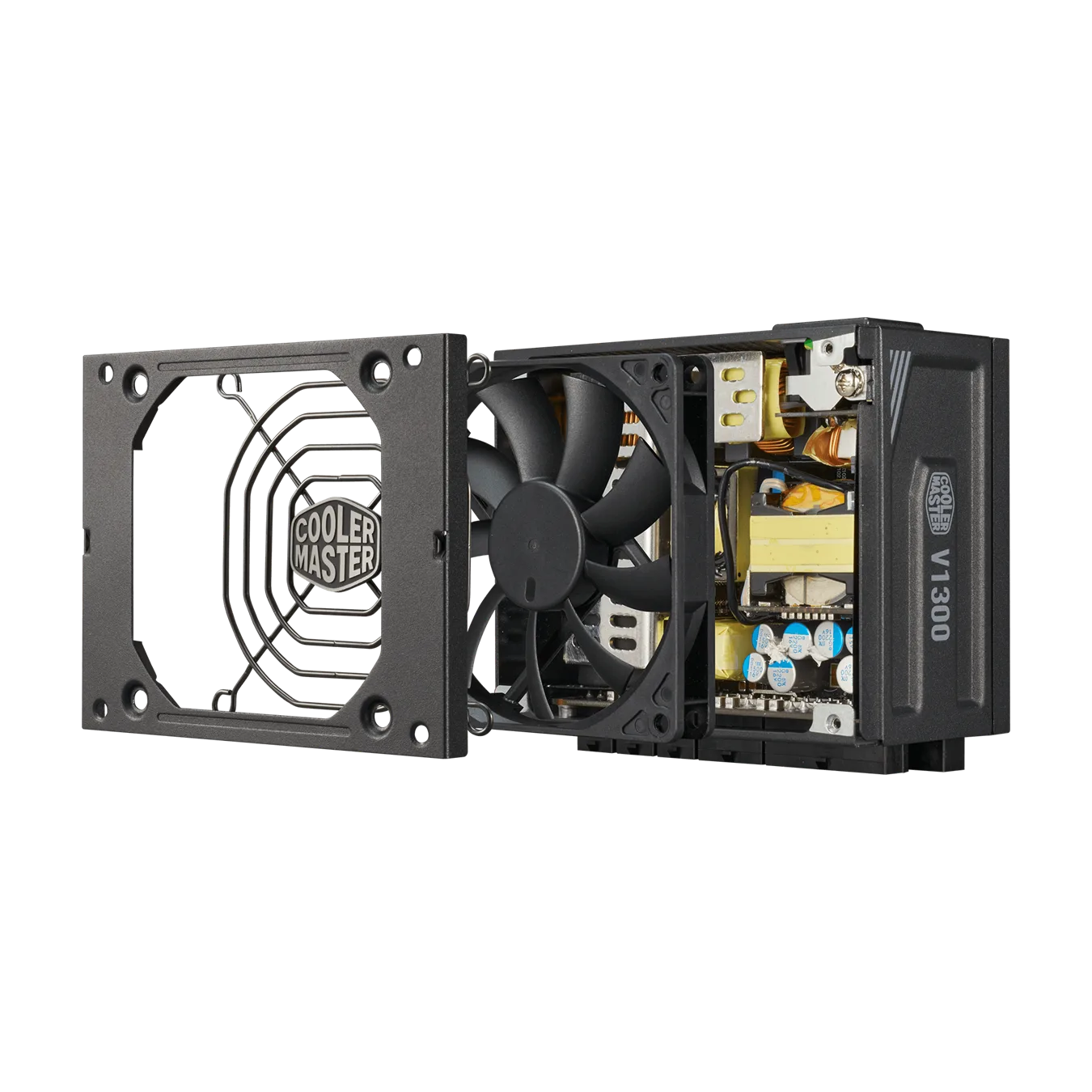

V SFX Platinum , Fully Modular 1300W A/EU Cable [MPZ-D001-SFBP-B]

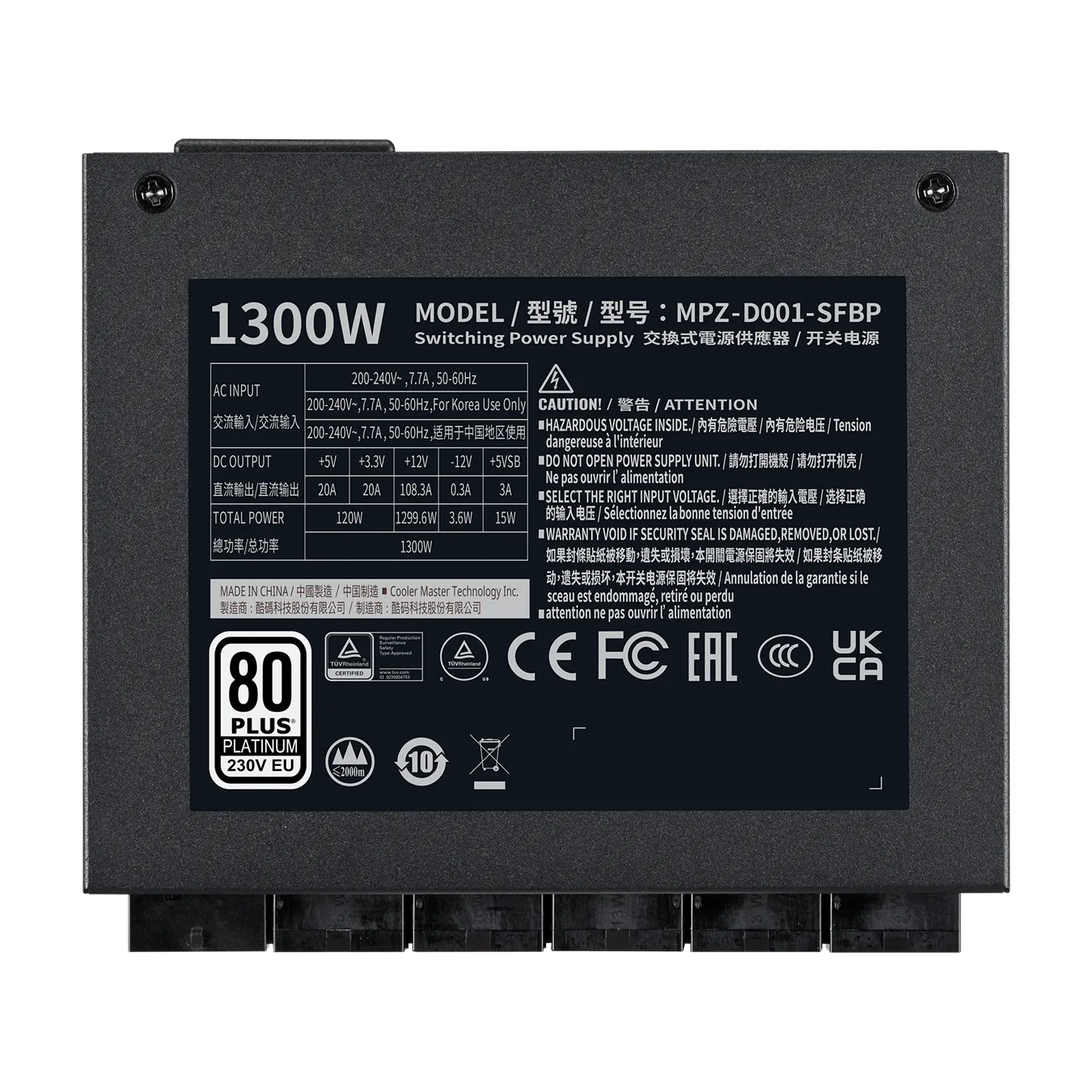

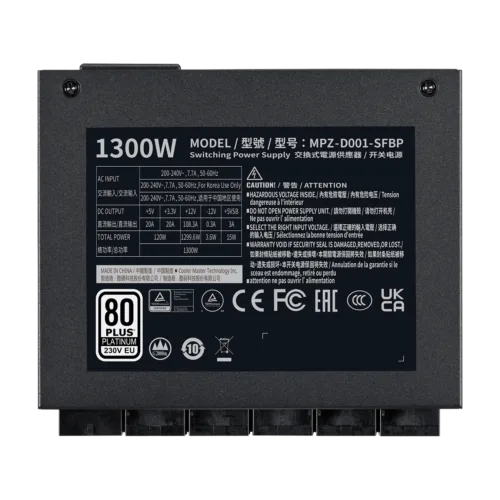

Model MPZ-D001-SFBP-B
ATX Version ATX3.0, SFX 12V Ver. 3.42
PFC Active PFC
Input Voltage 200-240V
Input Current 7.7A (Max.)
Input Frequency 50-60Hz
Dimensions (L x W x H) 100 x 125 x 63.5 mm

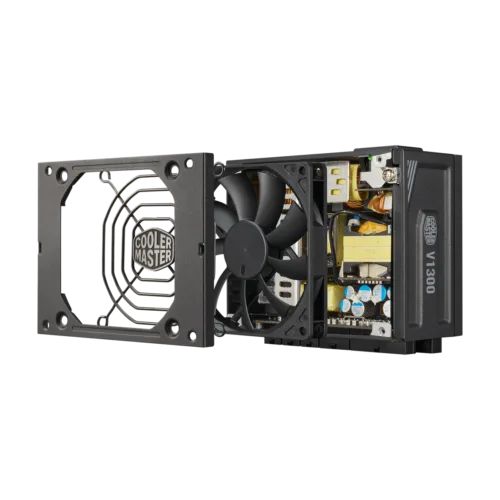

Fan Size 92mm
Fan Bearing FDB
Efficiency ≥ 94% @ Typical Load
80 PLUS Rating 80 PLUS Platinum EU 230V
ErP 2014 Lot 3 Yes
Operating Temperature 0-50°C
Power Good Signal 100 – 150 ms
Hold Up Time ≥16ms at 60% Load
MTBF >100,000 Hours
Protections OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection
Regulatory TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, UKCA

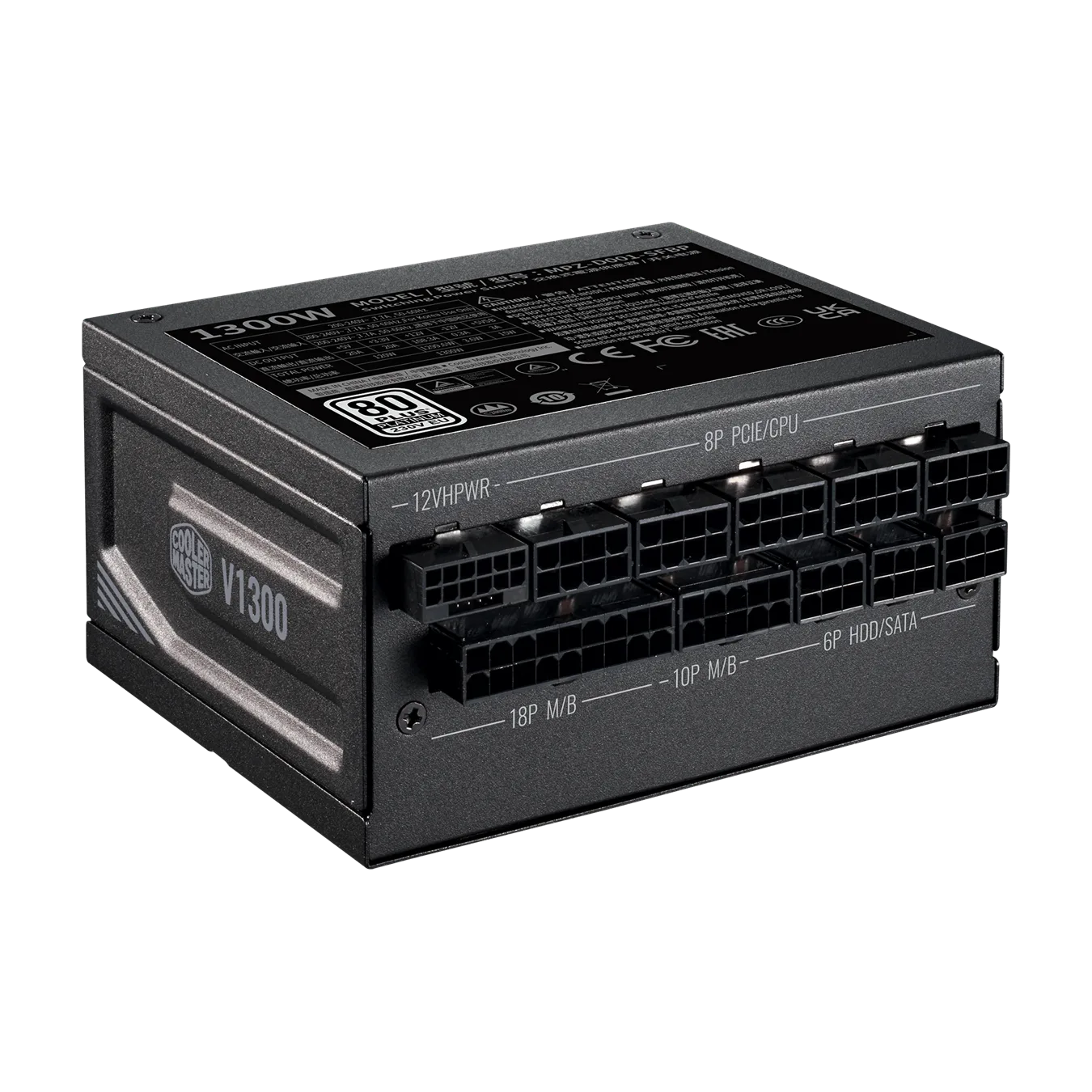

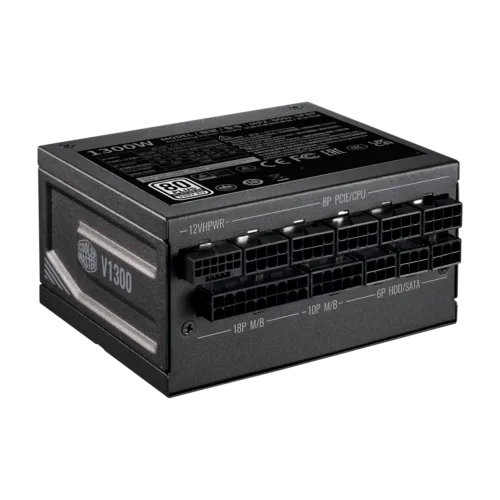

ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
EPS 8 Pin Connector 1
SATA Connectors 8
Peripheral 4 Pin Connectors 4
PCI-e 6+2 Pin Connectors 3
12VHPWR Connector 1
Series V SFX Series
80 Plus Platinum
Modular Full Modular
Wattage Above 750W
