Description
Brand APC

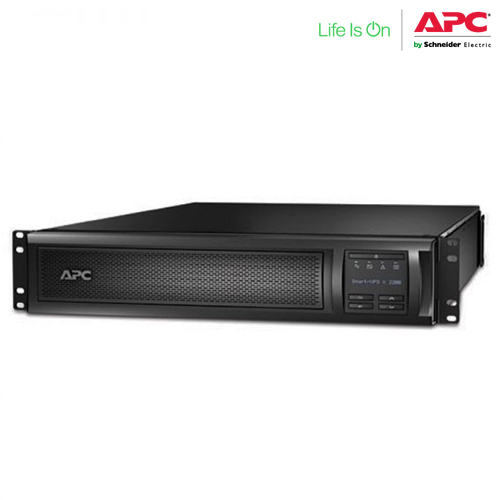

Model [SMX2200RMHV2U] UPS “APC” Smart-UPS X 2200VA Rack/Tower LCD 200-240V
Output Power Capacity 1.98kWatts / 2.2kVA
Nominal Output Voltage 208V, 230V
Topology Line interactive
Output Connections (8) IEC 320 C13 (Battery Backup), (2) IEC Jumpers (Battery Backup), (1) IEC 320 C19 (Battery Backup)
Nominal Input Voltage 208V, 230V
Input Connections IEC 60320 C14
Input Voltage Range for Main Operation 140 – 280V
Typical Recharge Time 3hour(s)
Control Panel LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators, Multi-function LCD status and control console
Height 85MM, 8.5CM
Width 432MM, 43.2CM
Depth 667MM, 66.7CM
Weight 37.32KG
Warranty 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
Additional information
| Product Type | UPS |
|---|---|
| Brand | APC |
| Series | SMX |
| Output Power Capacity | 1.98kWatts / 2.2kVA |
| Nominal Output Voltage | 208V, 230V |
| Topology | Line interactive |
| Output Connections | (8) IEC 320 C13 (Battery Backup), (2) IEC Jumpers (Battery Backup), (1) IEC 320 C19 (Battery Backup) |
| Nominal Input Voltage | 208V, 230V |
| Input Connections | IEC 60320 C14 |
| Input Voltage Range for Main Operation | 140 – 280V |
| Typical Recharge Time | 3hour(s) |
| Control Panel | LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators, Multi-function LCD status and control console |
| Height | 85MM, 8.5CM |
| Width | 432MM, 43.2CM |
| Depth | 667MM, 66.7CM |
| Weight | 37.32KG |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available |
