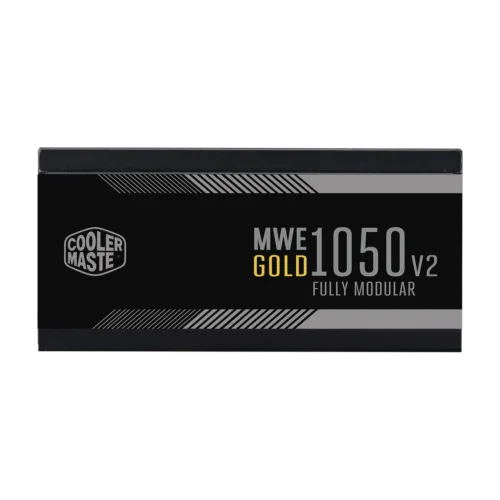

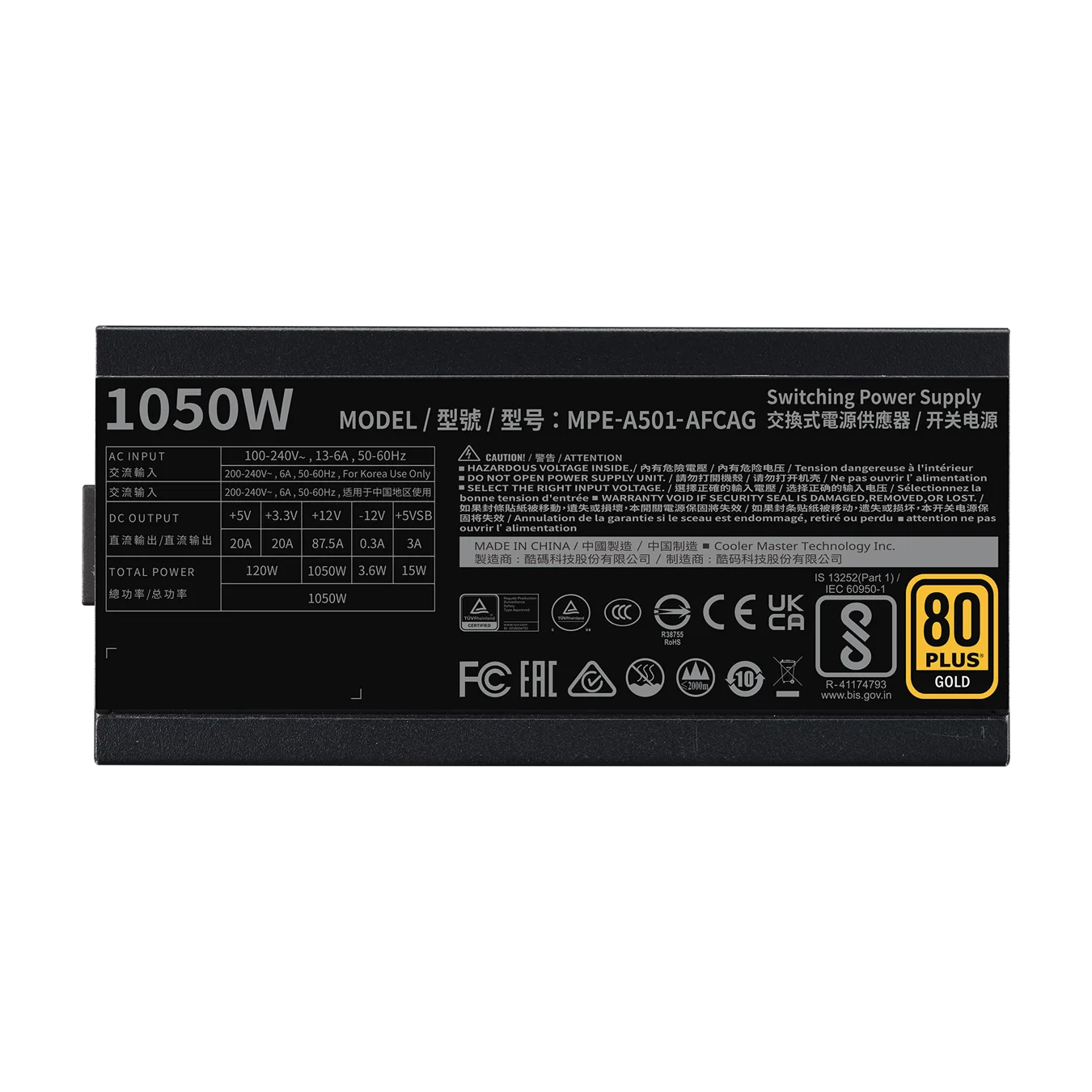

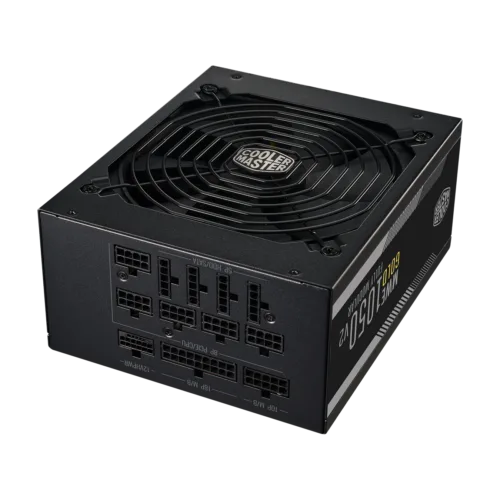

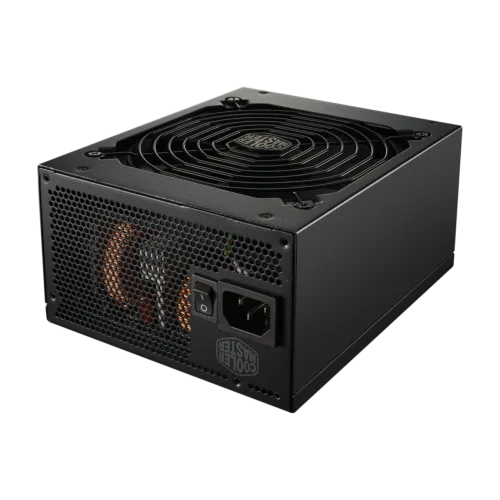

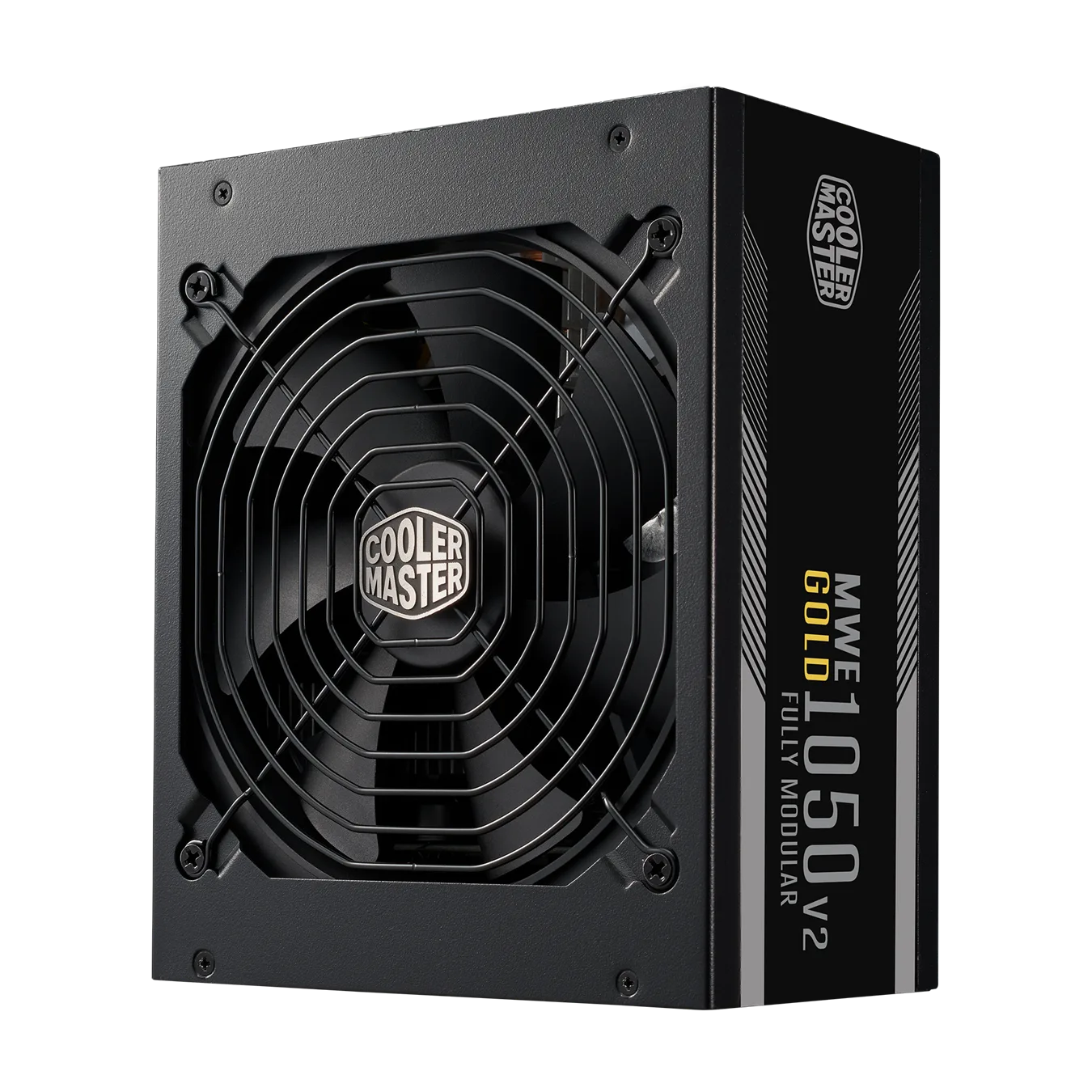

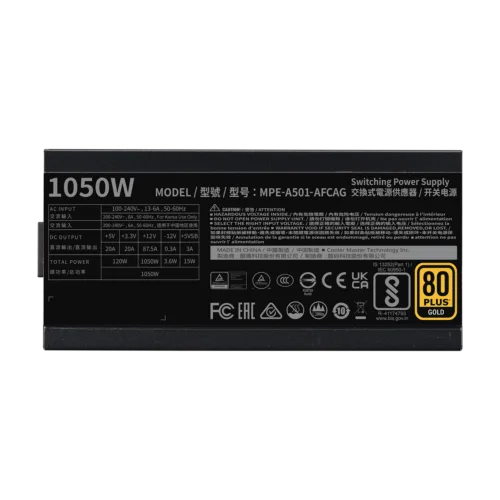

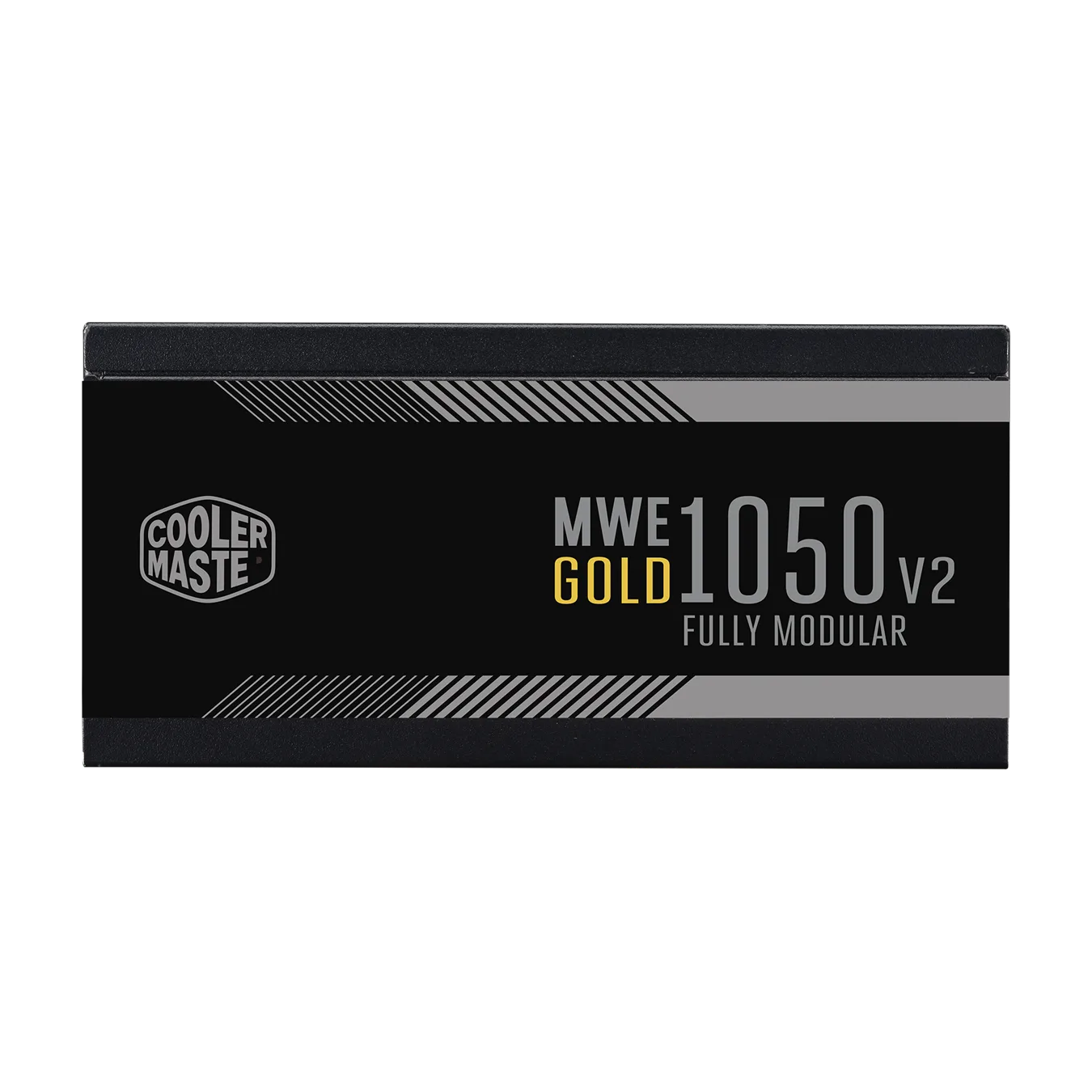

MWE Gold V2,FM1050W ATX3.0 A/EU Cable [MPE-A501-AFCAG-3EU]

Model MPE-A501-AFCAG-3
ATX Version ATX Rev. 3.0
PFC Active PFC
Input Voltage 100-240V
Input Current 13-6A
Input Frequency 50-60Hz
Dimensions (L x W x H) 180 x 150 x 86 mm
Fan Size 140mm
Fan Bearing FDB
Efficiency ≥90% @ Typical Load
80 PLUS Rating 80 PLUS Gold
ErP 2014 Lot 3 Yes
Operating Temperature 0-50°C
Power Good Signal 100 – 150 ms
Hold Up Time ≥16ms at 100% Load
MTBF >100,000 Hours
Protections OVP, OPP, SCP, OCP, UVP, OTP, Inrush Protection
Regulatory TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS
ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
EPS 8 Pin Connector 1
SATA Connectors 12
Peripheral 4 Pin Connectors 4
PCI-e 6+2 Pin Connectors 3
12VHPWR Connector 1
Series MWE Gold Series
80 Plus Gold
Modular Full Modular
Wattage Above 750W
