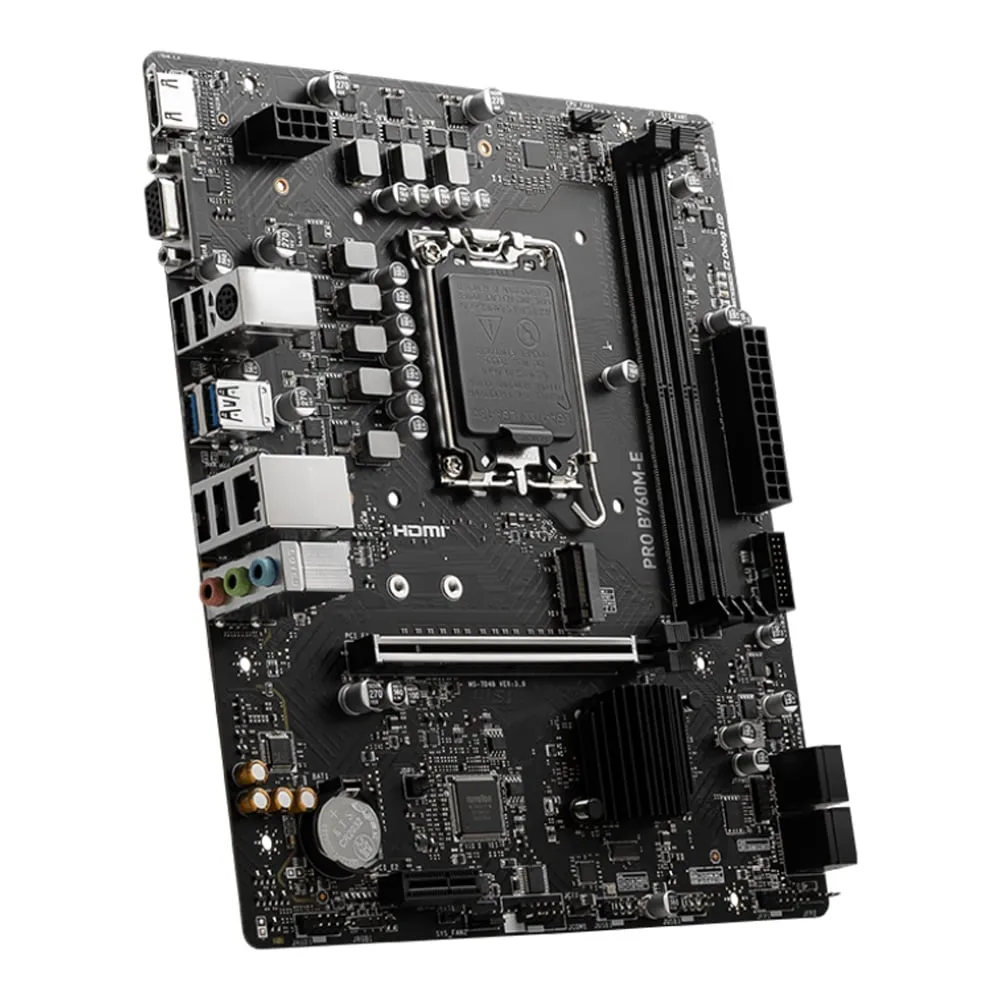

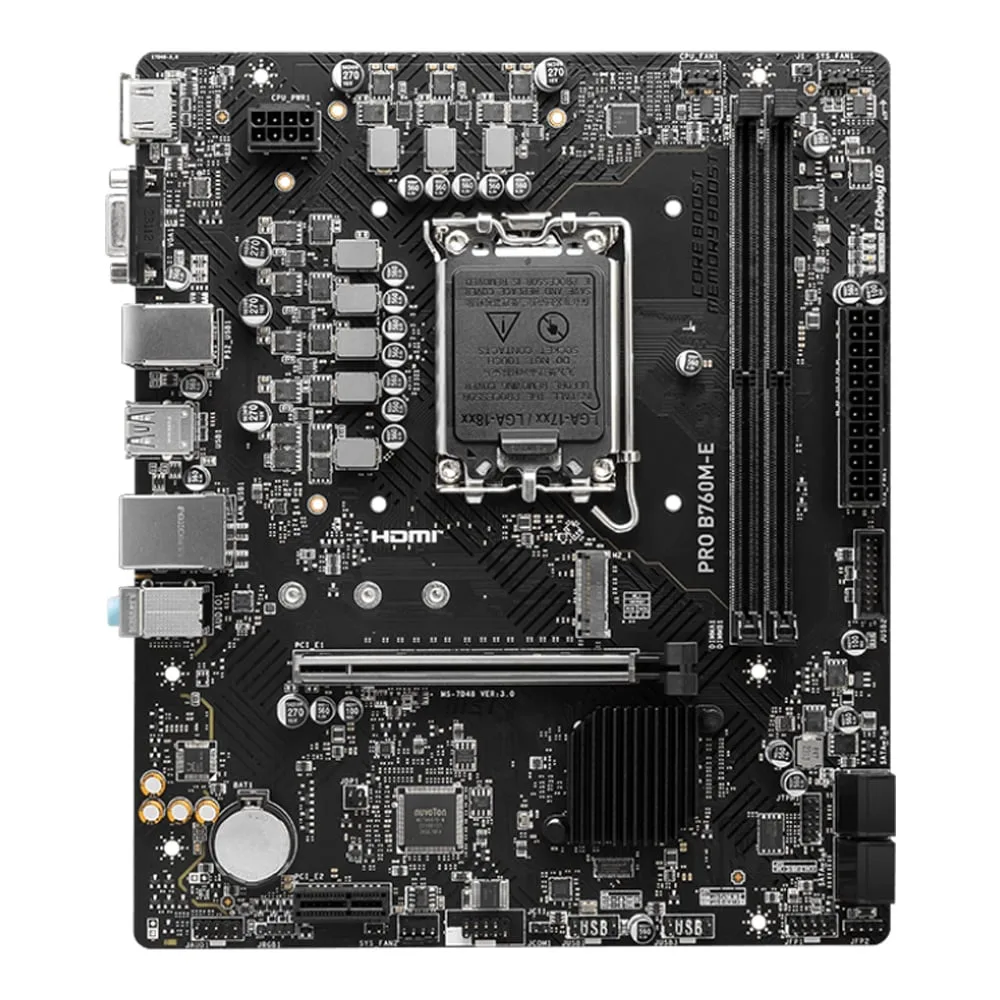

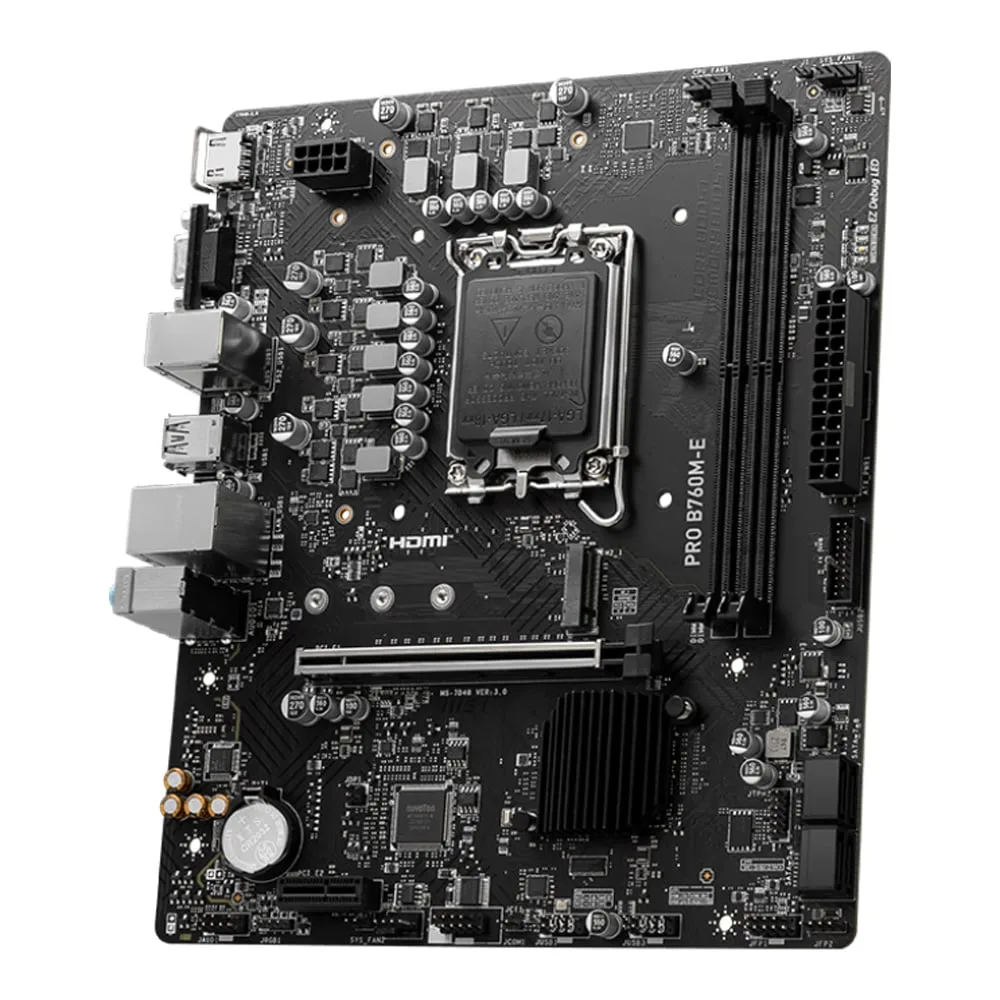

MAINBOARD (เมนบอร์ด) MSI PRO B760M-E (DDR5) (SOCKET LGA 1700) (MICRO-ATX)
฿3,180.00
| Product Type | Mainboard |
| Brand | MSI |
| Model | PRO B760M-E |
| Socket | 1700 (12th Gen – Alder Lake) , 1700 (13th Gen – Raptor Lake) , 1700 (14th Gen – Raptor Lake Refresh) |
| Wattage | 150W |
| Chipset | Intel B760 |
| Series | Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium |
| Slot | 2 |
| Memory Type | DDR5 |
| Max. Capacity | 96 GB |
| Speed | 4800 , 5000 , 5000 (OC) , 5200 , 5200 (OC) , 5400 , 5400 (OC) , 5600 , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) |
| Graphic | Requires a CPU with Integrated Graphics. — • 1 x HDMI Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz* • 1 x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz — *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Audio | Realtek ALC897 |
| Audio Detail | 7.1-Channel High Definition Audio |
| SATA 2 | – Port |
| SATA 3 | 4 Port |
| RAID | RAID 0, RAID 1, RAID 5, RAID 10 for SATA Storage Devices |
| M.2 | • 1 x M.2 slot* (Key M) (From CPU) – Supports up to PCIe 4.0 x4 – Supports up to SATA 6Gb/s – Supports 2242/2260/2280 storage devices — * SATA_5 will be unavailable when installing M.2 SATA SSD in M2_1 slot. Port |
| Details | • 1 x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 • 1 x PCIe x1 slot (From B760 chipset) Supports up to PCIe 3.0 x1 |
| Slot | 1 x PCIe 3.0 x1 Slot , 1 x PCIe 4.0 x16 Slot |
| LAN | Realtek RTL8111H |
| LAN Speed | 100/1000 Mbps |
| Wireless | No |
| USB 2.0 | 4 Port |
| USB 3.0 | – Port |
| USB 3.1 | – Port |
| Serial | – Port |

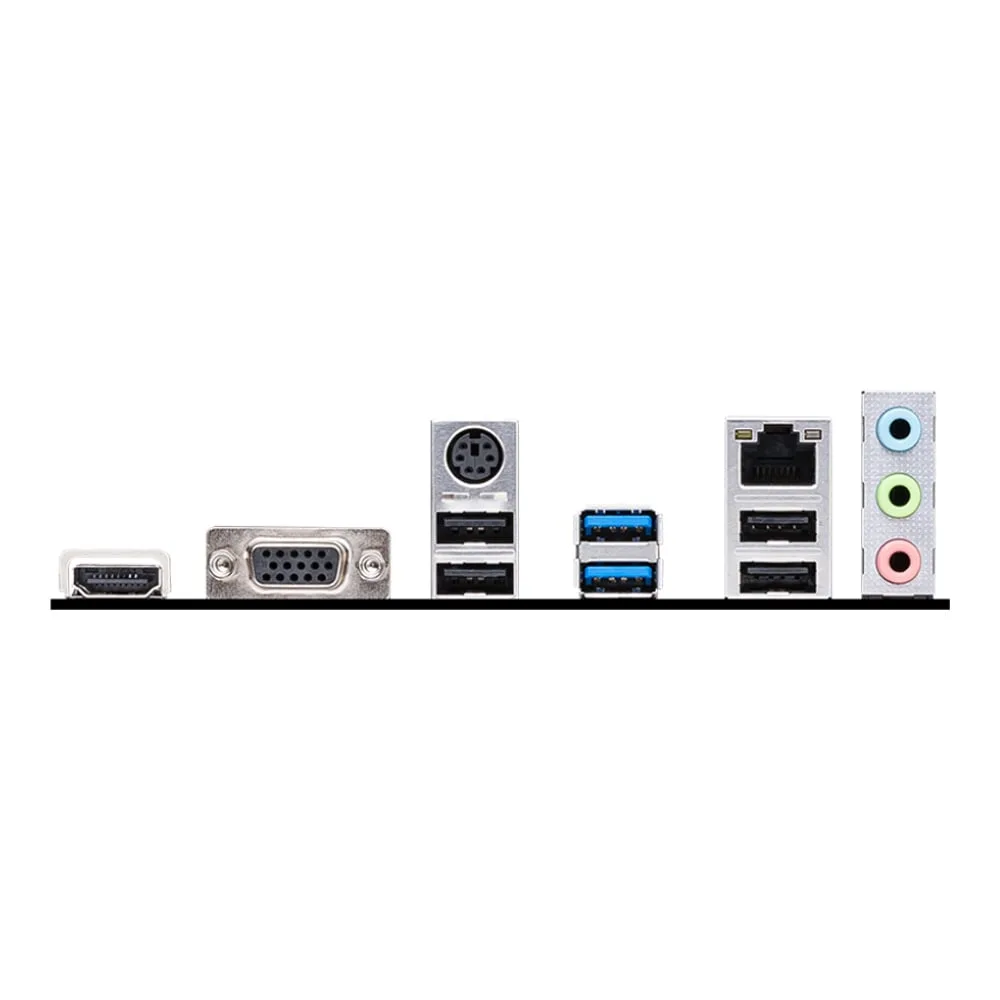

| USB 3.2 | 2 x USB 3.2 Gen 1 Type-A Port |
| D-Sub (VGA) | 1 Port |
| DVI | – Port |
| HDMI | 1 Port |
| DisplayPort | – Port |
| Audio | 3 Port |
| PS/2 | 1 (Keyboard/Mouse combo) Port |
| Additional | No |
| LAN | 1 Port |
| Form Factor | Micro-ATX |
| Power Connector | 24 + 8 Pin |
| Dimension | 23.6 x 20.0 cm |
| การรับประกัน | 3 Years |
| Product Type | Mainboard |
|---|---|
| Brand | MSI |
| Model | PRO B760M-E |
