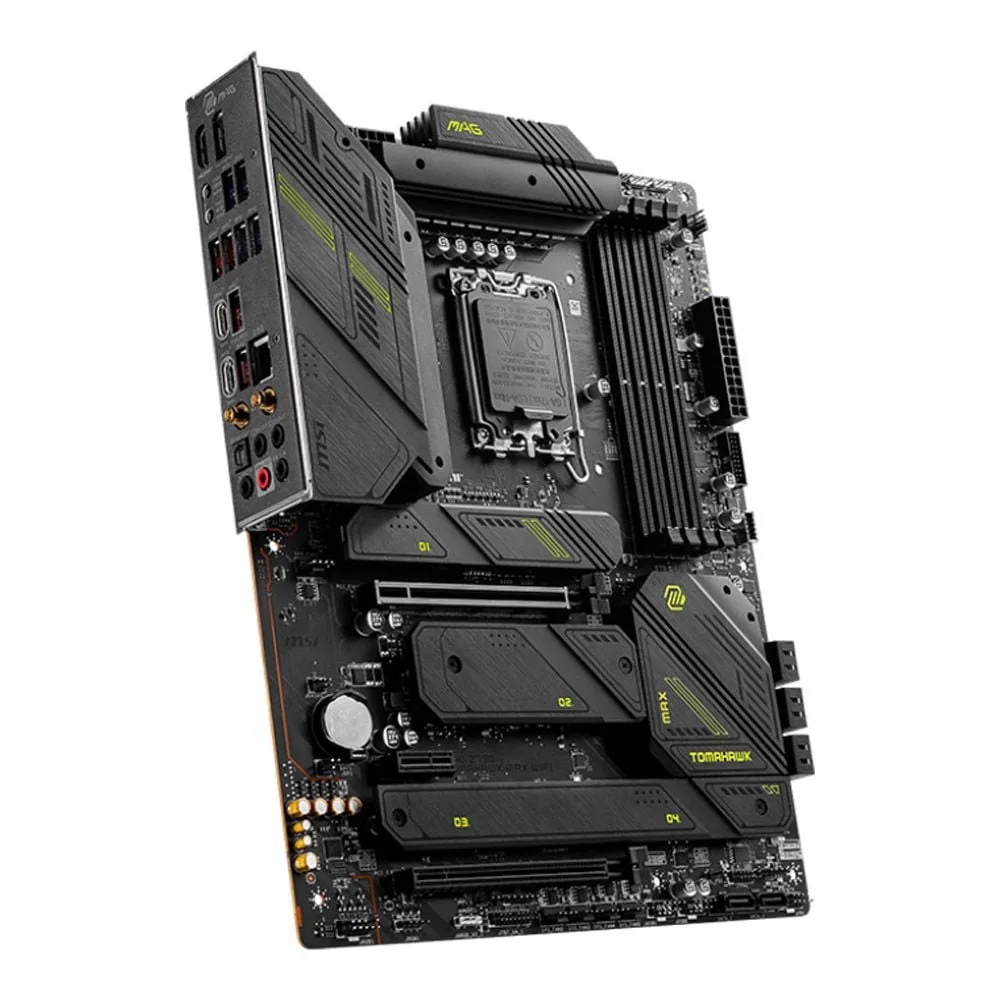

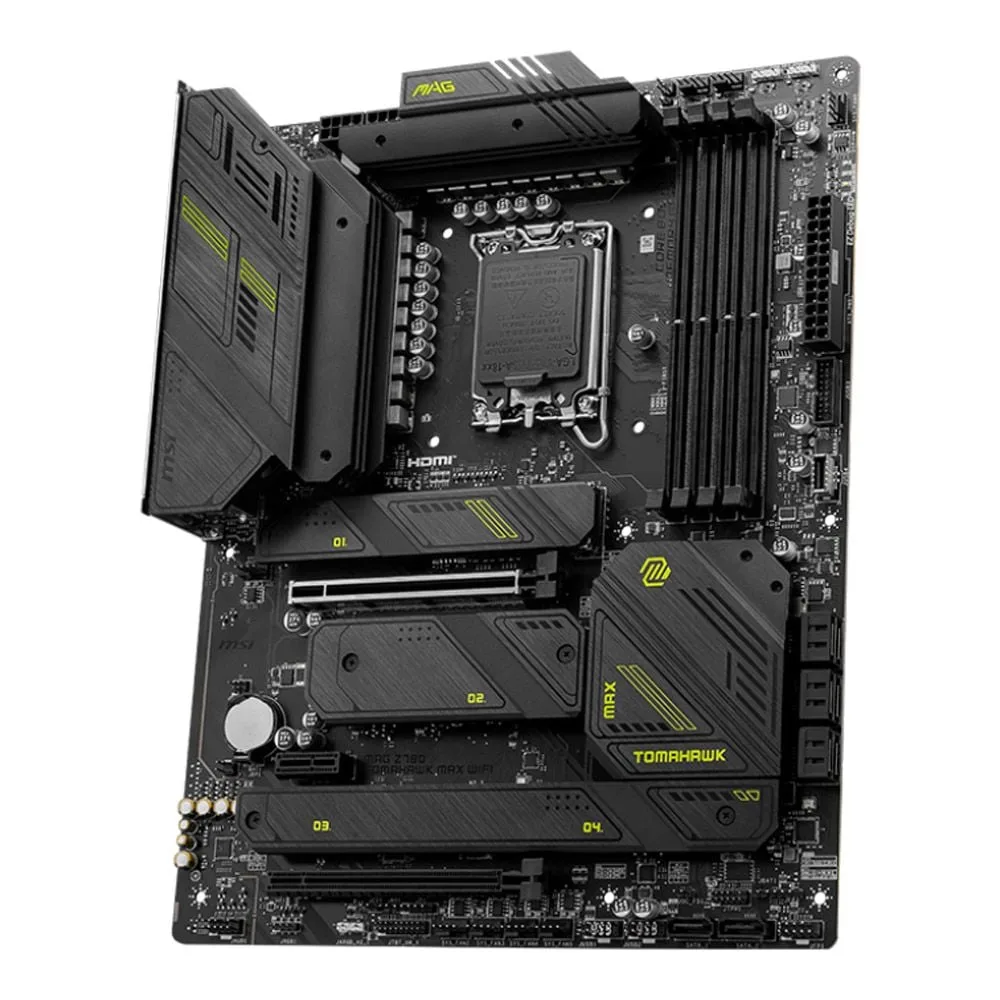

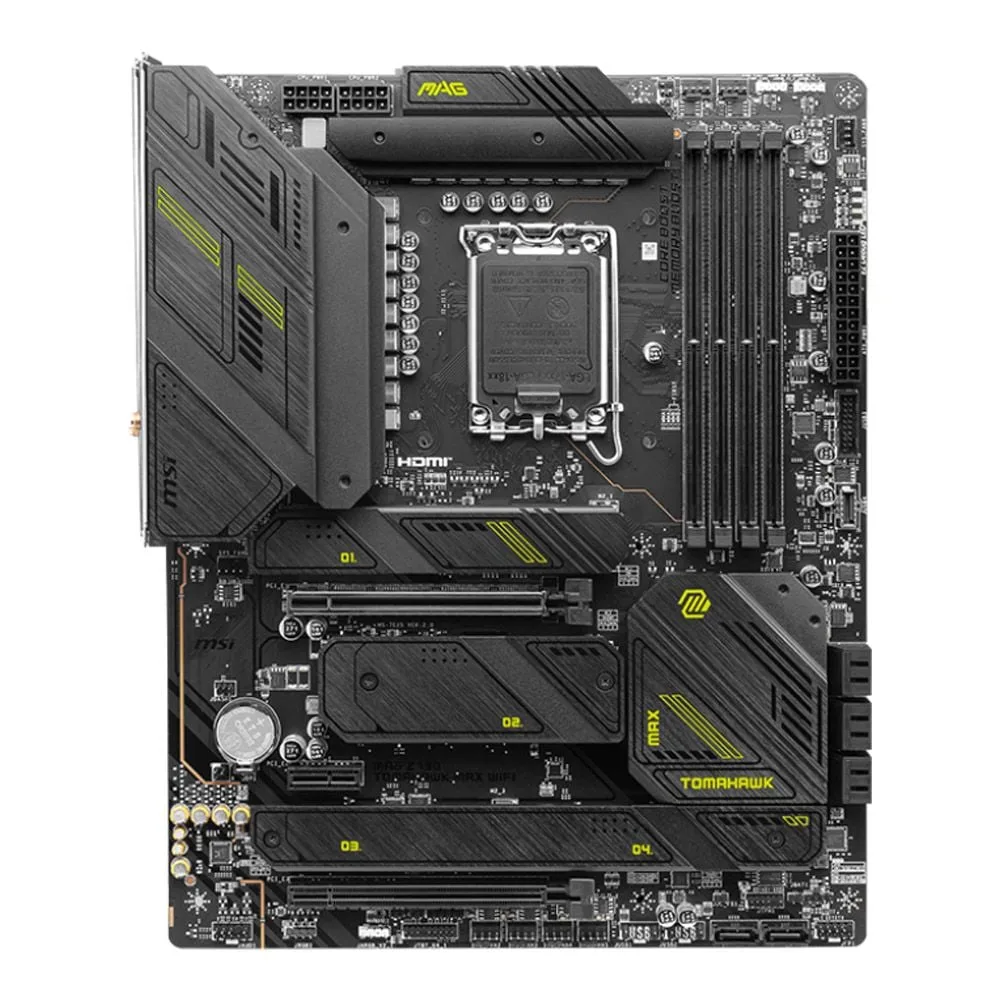

MAINBOARD (เมนบอร์ด) MSI MAG Z790 TOMAHAWK MAX WIFI (SOCKET LGA 1700 DDR5 ATX)
฿12,590.00
| Product Type | Mainboard |
| Brand | MSI |
| Model | MAG Z790 TOMAHAWK MAX WIFI |
| Socket | 1700 (12th Gen – Alder Lake) , 1700 (13th Gen – Raptor Lake) , 1700 (14th Gen – Raptor Lake Refresh) |
| Wattage | 150W |
| Chipset | Intel Z790 |
| Series | Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium |
| Slot | 4 |
| Memory Type | DDR5 |
| Max. Capacity | 256 GB |
| Speed | 4800 , 5000 , 5000 (OC) , 5200 , 5200 (OC) , 5400 , 5400 (OC) , 5600 , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7400 (OC) , 7600 (OC) , 7800 (OC) |
| Graphic | Requires a CPU with Integrated Graphics. — • 1 x HDMI 2.1 port with HDR, supporting a maximum resolution of 4K 60Hz*/ ** • 1 x DisplayPort 1.4 port with HBR3, supporting a maximum resolution of 8K 60Hz*/ ** — * Available only on processors featuring integrated graphics. ** Graphics specifications may vary depending on the CPU installed. |
| Audio | Realtek ALC4080 Codec |
| Audio Detail | • 7.1-Channel USB High Performance Audio • Supports up to 32-bit/384kHz playback on front panel • Supports S/PDIF output |
| SATA 2 | – Port |
| SATA 3 | 8 Port |
| RAID | • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices* • Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices — * SATA_A1~A2 do not support RAID function. |
| M.2 | 4 x M.2 slots (Key M) — • M2_1* slot (From CPU) – Supports up to PCIe 5.0 x4 – Supports 2260/ 2280/ 22110 storage devices • M2_2 slot (From Z790 chipset) – Supports up to PCIe 4.0 x4 – Supports 2260/ 2280 storage devices • M2_3** slot (From Z790 chipset) – Supports up to PCIe 4.0 x4 – Supports up to SATA 6Gb/s – Supports 2242/ 2260/ 2280 storage devices • M2_4 slot (From Z790 chipset) – Supports up to PCIe 4.0 x4 – Supports 2242/ 2260/ 2280 storage devices — * PCI_E1 slot will run at PCIe 5.0 x8 mode when installing M.2 PCIe SSD in the M2_1 slot. ** SATA_1~2 will be unavailable when installing M.2 SSD in the M2_3 slot. Port |
| Details | • 2 x PCIe x16 slots – PCI_E1* slot (From CPU) Supports up to PCIe 5.0 x16 – PCI_E3 slot (From Z790 Chipset) Supports up to PCIe 4.0 x4 • 1 x PCIe 3.0 x1 slot – PCI_E2 slot (From Z790 Chipset) Supports up to PCIe 3.0 x1 — * PCI_E1 slot will run at PCIe 5.0 x8 mode when installing M.2 PCIe SSD in the M2_1 slot. |
| Slot | 1 x PCIe 3.0 x1 Slot , 1 x PCIe 4.0 x16 Slot , 1 x PCIe 5.0 x16 Slot |
| LAN | Intel 2.5Gb Ethernet |
| LAN Speed | 100/1000/2500 Mbps |
| Wireless | Wi-Fi 7 • The Wireless module is pre-installed in the M.2 (Key-E) slot • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz*(320MHz) up to 5.8Gbps • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be • Supports Bluetooth 5.4**, MLO, 4KQAM — * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated. Please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. |
| USB 2.0 | – Port |
| USB 3.0 | – Port |
| USB 3.1 | – Port |
| Serial | – Port |

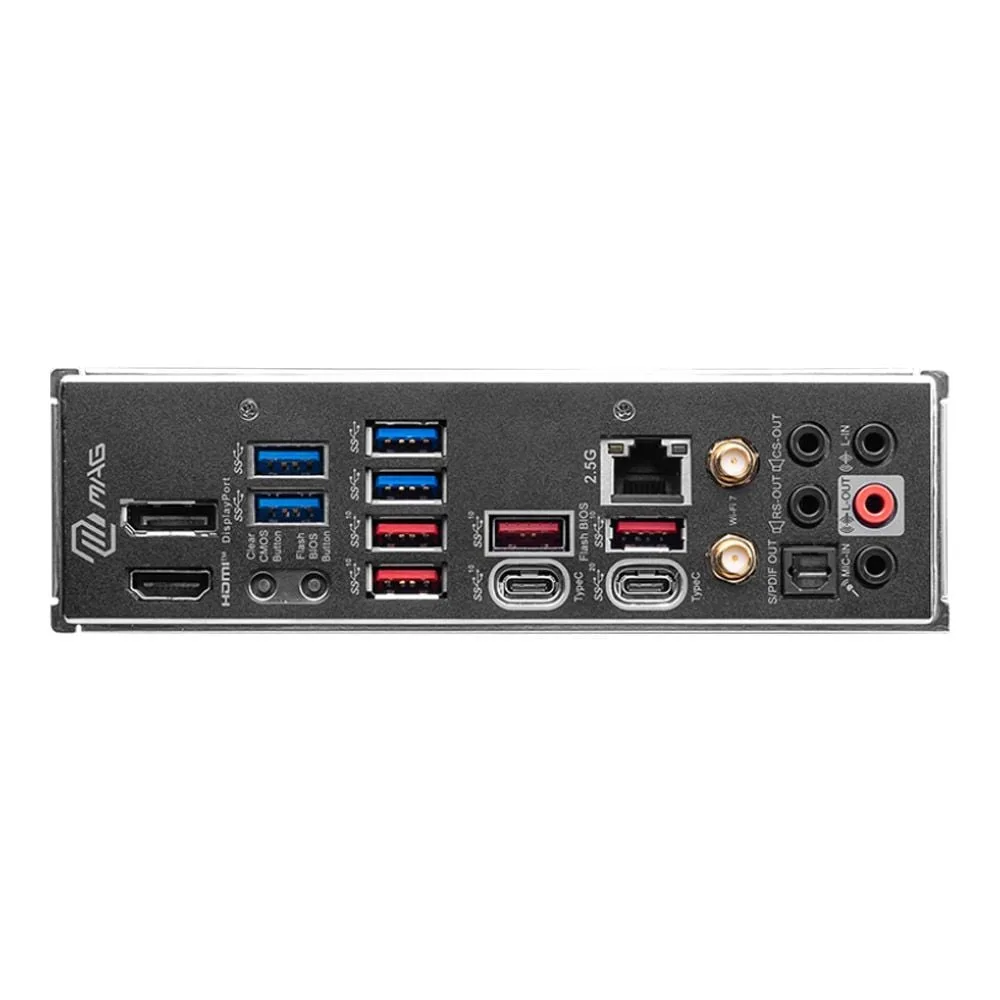

| USB 3.2 | 4 x USB 3.2 Gen 1 5Gbps Type-A 4 x USB 3.2 Gen 2 10Gbps Type-A 1 x USB 3.2 Gen 2 10Gbps Type-C 1 x USB 3.2 Gen 2×2 20Gbps Type-C Port |
| D-Sub (VGA) | – Port |
| DVI | – Port |
| HDMI | 1 Port |
| DisplayPort | 1 Port |
| Audio | 5 x Audio jacks 1 x Optical S/PDIF out Port |
| PS/2 | No |
| Additional | 1 x Clear CMOS button 1 x Flash BIOS button 2 x Wi-Fi antenna connectors |
| LAN | 1 Port |
| Form Factor | ATX |
| Power Connector | 24 + 8 + 8 Pin |
| Dimension | 30.5 x 24.4 cm |
| การรับประกัน | 3 Years |
| Product Type | Mainboard |
|---|---|
| Brand | MSI |
| Model | MAG Z790 TOMAHAWK MAX WIFI |
