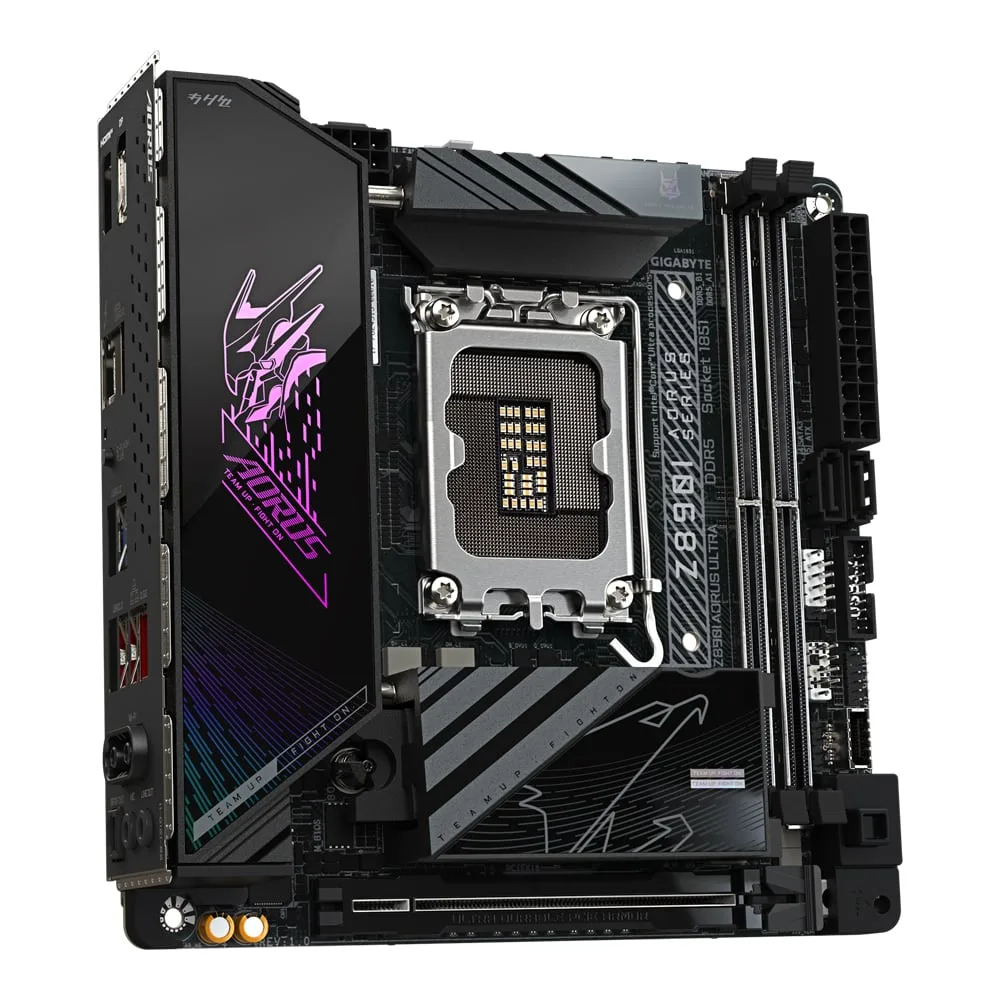

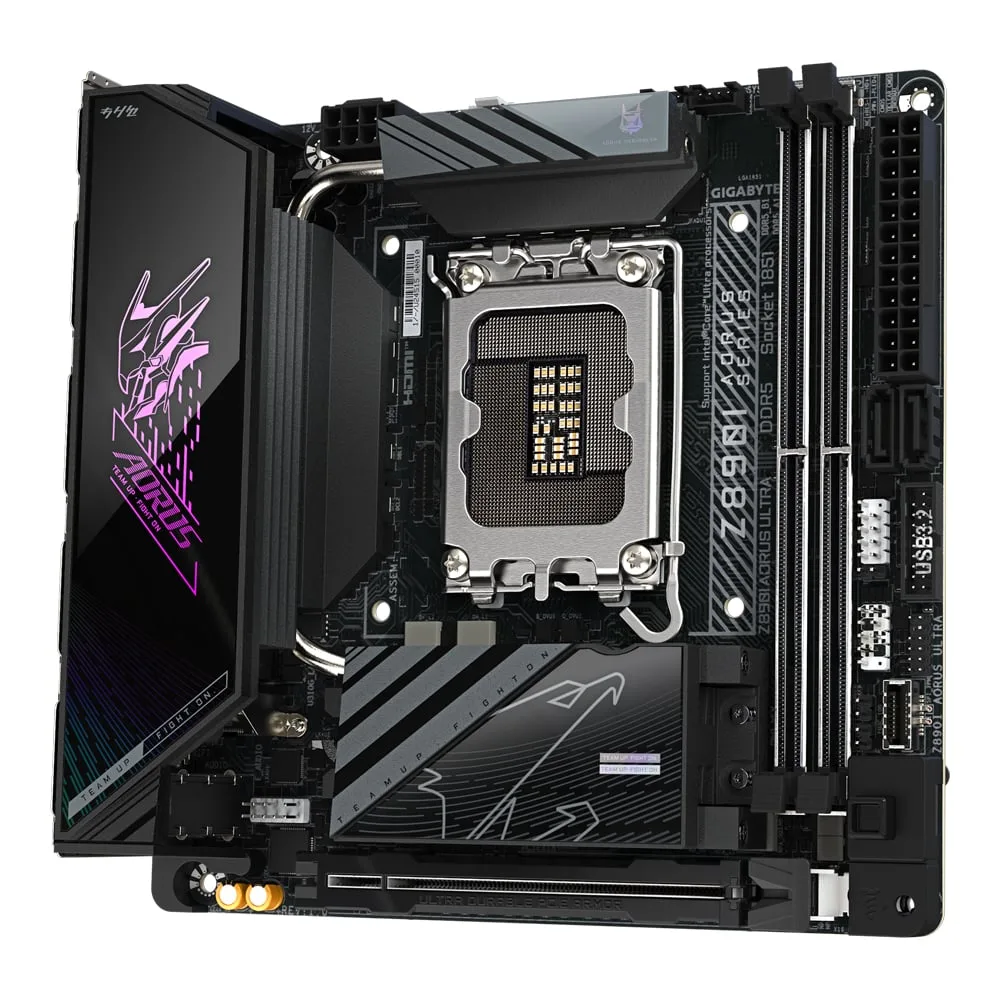

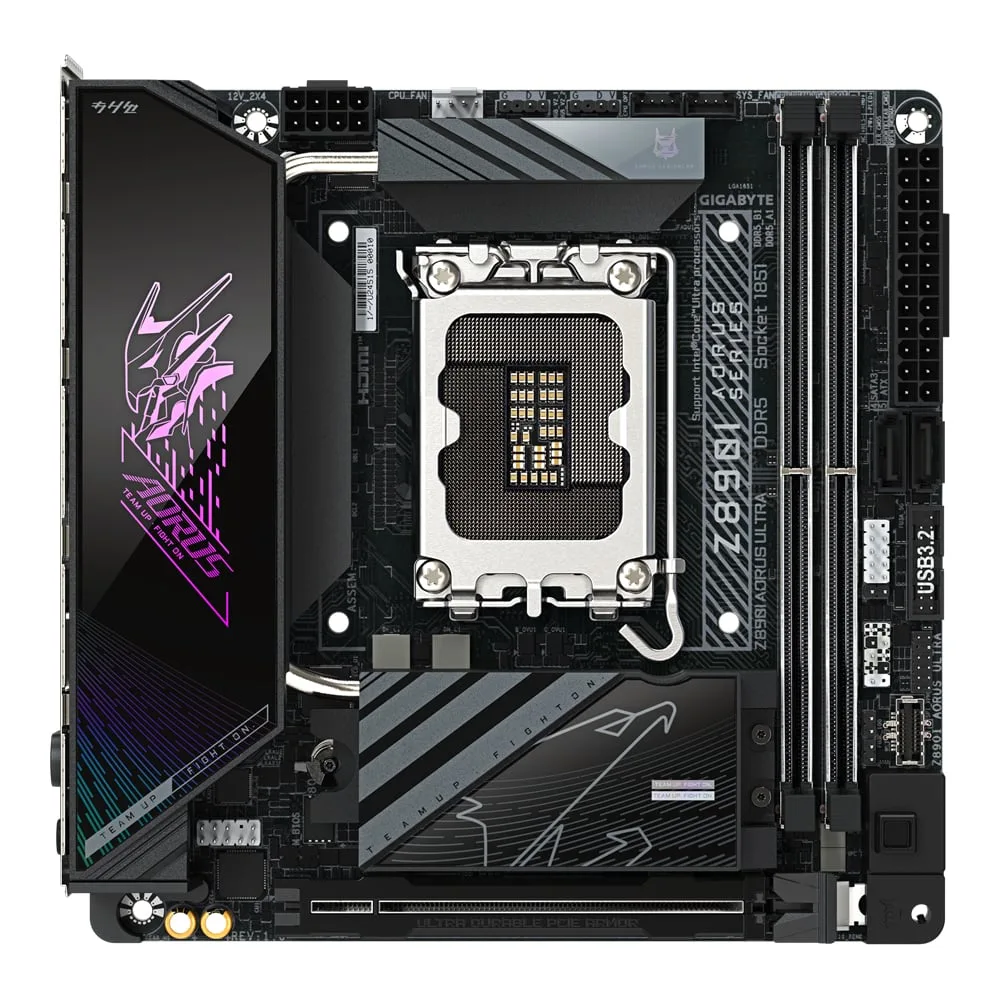

MAINBOARD (เมนบอร์ด) GIGABYTE Z890I AORUS ULTRA (REV. 1.0) (INTEL SOCKET 1851 DDR5 MINI-ITX)
฿12,890.00
| Product Type | Mainboard |
| Brand | Gigabyte |
| Model | Z890I AORUS ULTRA |
| Socket | 1851 (Arrow Lake-S) |
| Wattage | 125W |
| Chipset | Intel Z890 |
| Series | Core Ultra 5 , Core Ultra 7 , Core Ultra 9 |
| Slot | 2 |
| Memory Type | DDR5 |
| Max. Capacity | 128 GB |
| Speed | 5600 , 5600 (OC) , 5800 , 5800 (OC) , 6000 , 6000 (OC) , 6200 , 6200 (OC) , 6400 , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7400 (OC) , 7600 (OC) , 7800 (OC) , 7900 (OC) , 7950 (OC) , 8000 (OC) , 8200 (OC) , 8266 (OC) , 8400 (OC) , 8600 (OC) , 8800 (OC) |
| Graphic | Requires a CPU with Integrated Graphics. — Integrated Graphics Processor-Intel HD Graphics support: • 1 x Intel Thunderbolt 4 connector (USB4 USB Type-C port), supporting DisplayPort and Thunderbolt video outputs – When a Thunderbolt monitor is installed, the maximum resolution supported is 5120×2880@60 Hz with 24 bpp (single display output). – When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output). * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, |
| Audio | Realtek Audio CODEC |
| Audio Detail | – High Definition Audio – 2/4/5.1/7.1-channel – Support for S/PDIF Out — * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| SATA 2 | – Port |
| SATA 3 | 2 Port |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0 and RAID 1 support for SATA storage devices |
| M.2 | 2 x M.2 Connectors — CPU: • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) — Chipset: • 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) Port |
| Details | CPU: • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. |
| Slot | 1 x PCIe 5.0 x16 Slot |
| LAN | Realtek 2.5Gb Ethernet |
| LAN Speed | 100/1000/2500 Mbps |
| Wireless | Intel Wi-Fi 7 BE202 (BE200NGW M) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – Bluetooth 5.4 – Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) — * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations. |
| USB 2.0 | – Port |
| USB 3.0 | – Port |
| USB 3.1 | – Port |
| Serial | – Port |

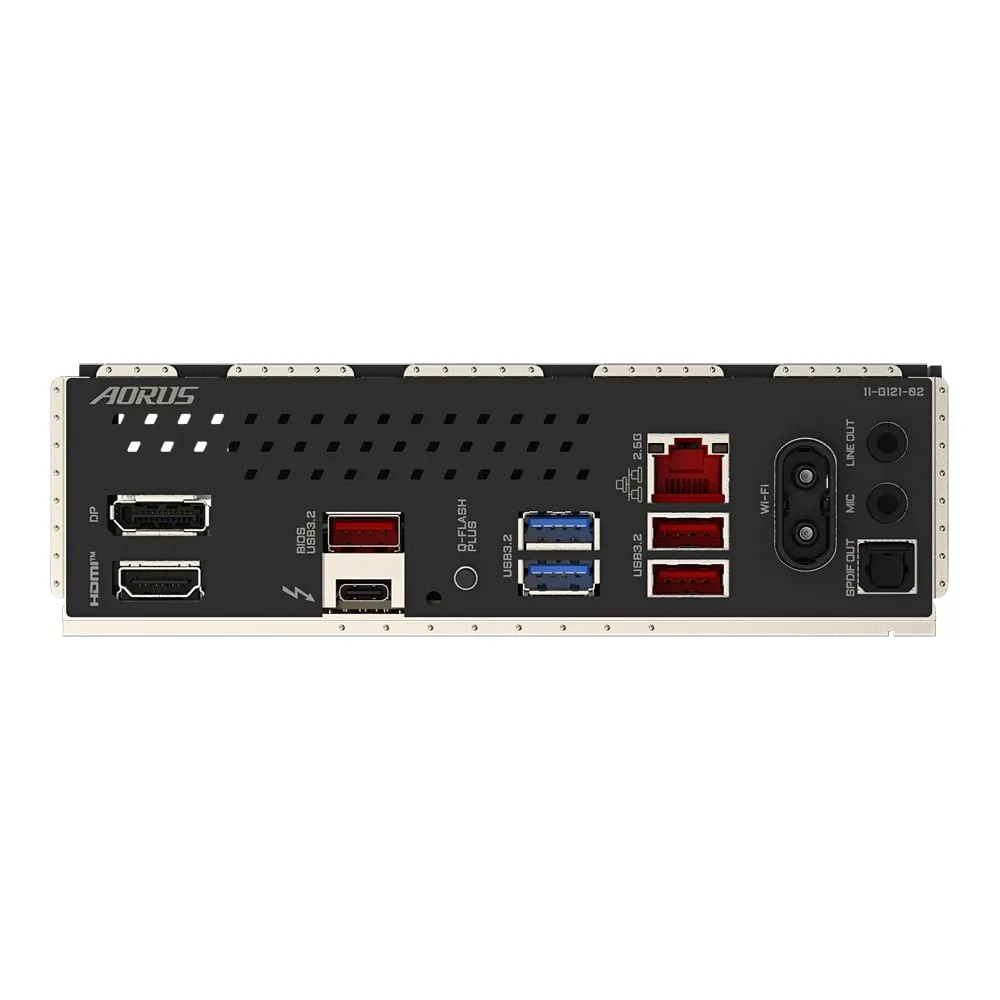

| USB 3.2 | 1 x Intel Thunderbolt 4 connectors (USB Type-C) 3 x USB 3.2 Gen 2 Type-A (red) 2 x USB 3.2 Gen 1 Type-A Port |
| D-Sub (VGA) | – Port |
| DVI | – Port |
| HDMI | 1 Port |
| DisplayPort | 1 Port |
| Audio | 2 x Audio jacks 1 x Optical S/PDIF out Port |
| PS/2 | No |
| Additional | 1 x Q-Flash Plus button 2 x antenna connectors (2T2R) |
| LAN | 1 Port |
| Form Factor | Mini-ITX |
| Power Connector | 24 + 8 Pin |
| Dimension | 17.0 x 17.0 cm |
| การรับประกัน | 3 Years |
| Product Type | Mainboard |
|---|---|
| Brand | Gigabyte |
| Model | Z890I AORUS ULTRA |
