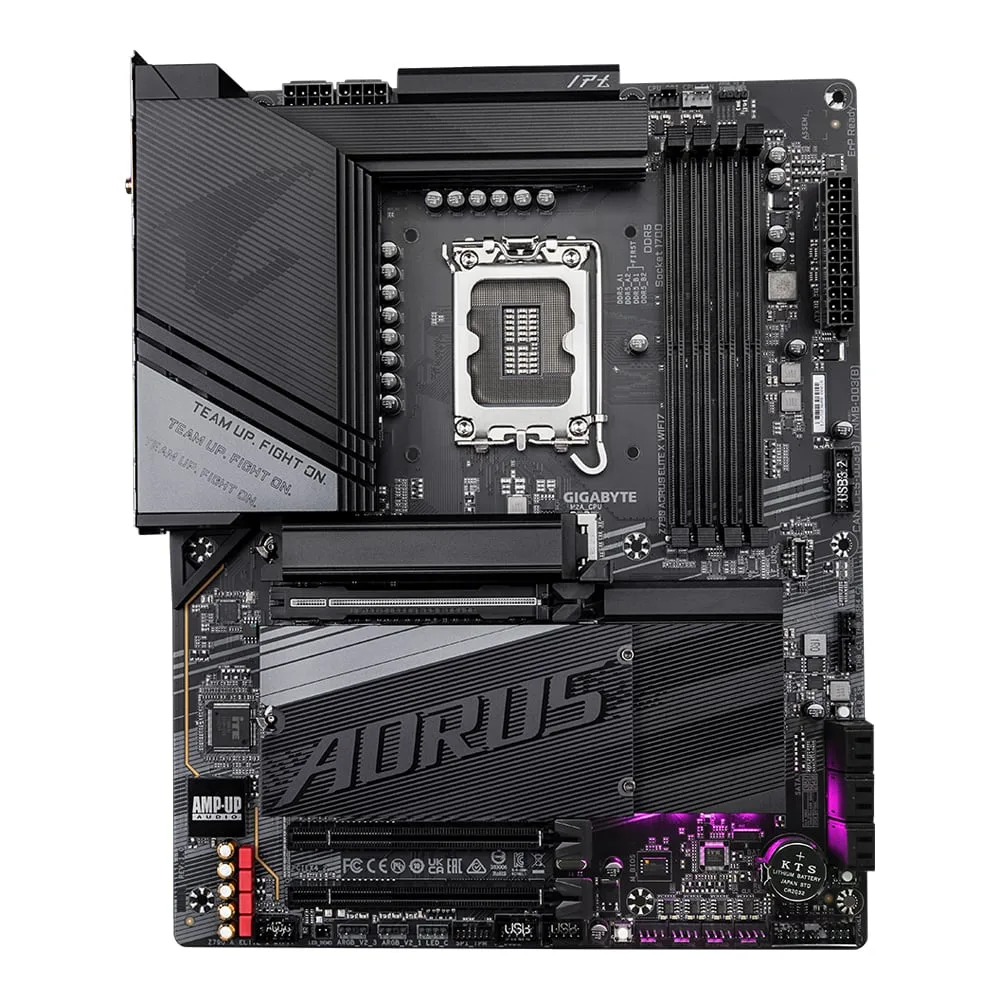

MAINBOARD (เมนบอร์ด) GIGABYTE Z790 AORUS ELITE X WIFI7 (REV. 1.2) (SOCKET LGA 1700 DDR5 ATX)
฿12,190.00
| Product Type | Mainboard |
| Brand | Gigabyte |
| Model | Z790 AORUS ELITE X WIFI7 (rev. 1.2) |
| Socket | 1700 (12th Gen – Alder Lake) , 1700 (13th Gen – Raptor Lake) , 1700 (14th Gen – Raptor Lake Refresh) |
| Wattage | 150W |
| Chipset | Intel Z790 |
| Series | Celeron , Core i3 , Core i5 , Core i7 , Core i9 |
| Slot | 4 |
| Memory Type | DDR5 |
| Max. Capacity | 192 GB |
| Speed | 4000 , 4800 , 5200 (OC) , 5400 (OC) , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7400 (OC) , 7600 (OC) , 7800 (OC) , 7900 (OC) , 7950 (OC) , 8000 (OC) , 8200 (OC) , 8266 (OC) |
| Graphic | Requires a CPU with Integrated Graphics. — Integrated Graphics Processor-Intel HD Graphics support: • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. • 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 — (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek ALC1220-VB |
| Audio Detail | • The back panel line out jack supports DSD audio. • High Definition Audio • 2/4/5.1/7.1-channel (You can change the functionality of an audio jack using the audio software. To configure) • 7.1-channel audio, access the audio software for audio settings. • Support for S/PDIF Out |
| SATA 2 | – Port |
| SATA 3 | 6 Port |
| RAID | • RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices • RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| M.2 | 4 x M.2 Connectors — CPU: • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) — Chipset: • 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) • 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) Port |
| Details | CPU: • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. — Chipset: • 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2) |
| Slot | 1 x PCIe 5.0 x16 Slot , 2 x PCIe 4.0 x16 Slot |
| LAN | Intel 2.5Gb Ethernet |
| LAN Speed | 100/1000/2500 Mbps |
| Wireless | Qualcomm Wi-Fi 7 QCNCM865 (PCB rev. 1.2) • 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands • Bluetooth 5.3 • Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) — Note: Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10) Wi-Fi 7 channels on 6GHz band availability depends on individual country’s regulations. |
| USB 2.0 | 4 Port |
| USB 3.0 | – Port |
| USB 3.1 | – Port |
| Serial | – Port |

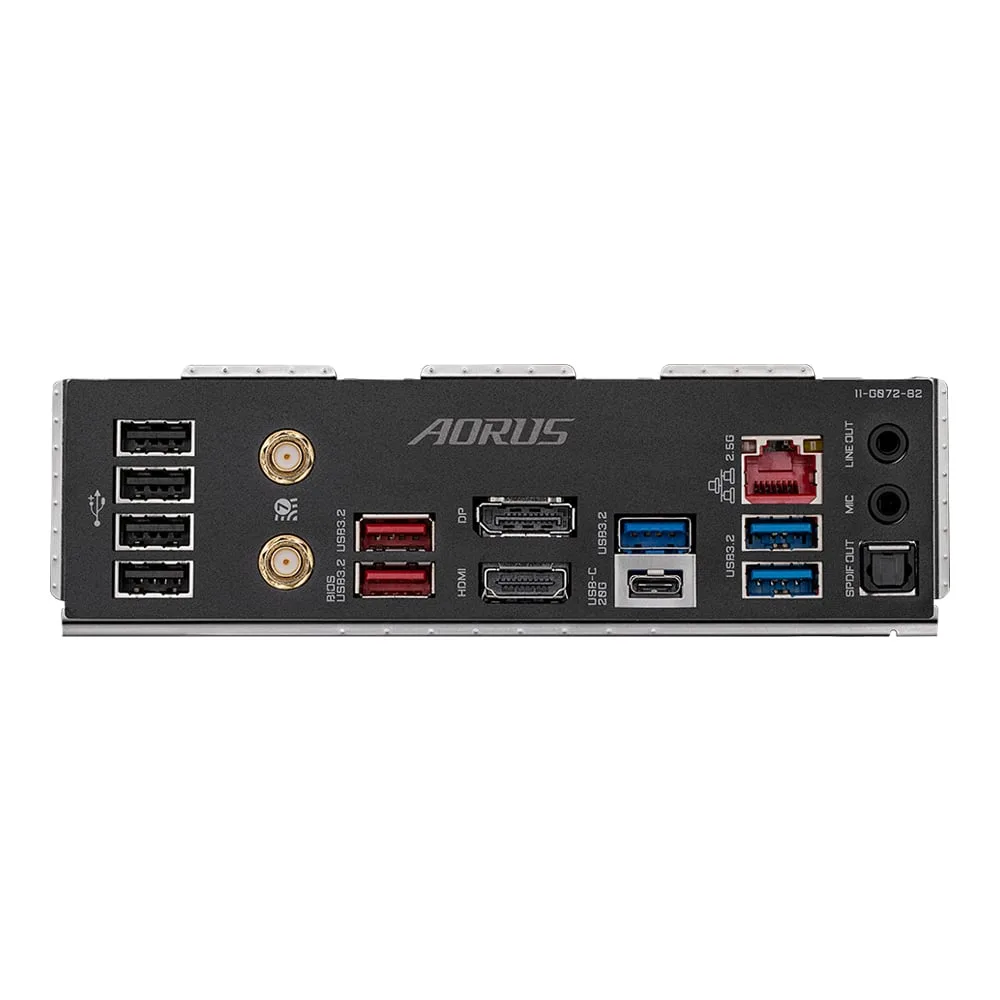

| USB 3.2 | 1 x USB 3.2 Gen 2×2 Type-C 2 x USB 3.2 Gen 2 Type-A (red) 3 x USB 3.2 Gen 1 Type-A Port |
| D-Sub (VGA) | – Port |
| DVI | – Port |
| HDMI | 1 Port |
| DisplayPort | 1 Port |
| Audio | 2 x Audio jacks 1 x Optical S/PDIF out Port |
| PS/2 | No |
| Additional | 2 x SMA antenna connectors (2T2R) |
| LAN | 1 Port |
| Form Factor | ATX |
| Power Connector | 24 + 8 + 8 Pin |
| Dimension | 30.5 x 24.4 cm |
| การรับประกัน | 3 Years |
| Product Type | Mainboard |
|---|---|
| Brand | Gigabyte |
| Model | Z790 AORUS ELITE X WIFI7 (rev. 1.2) |
