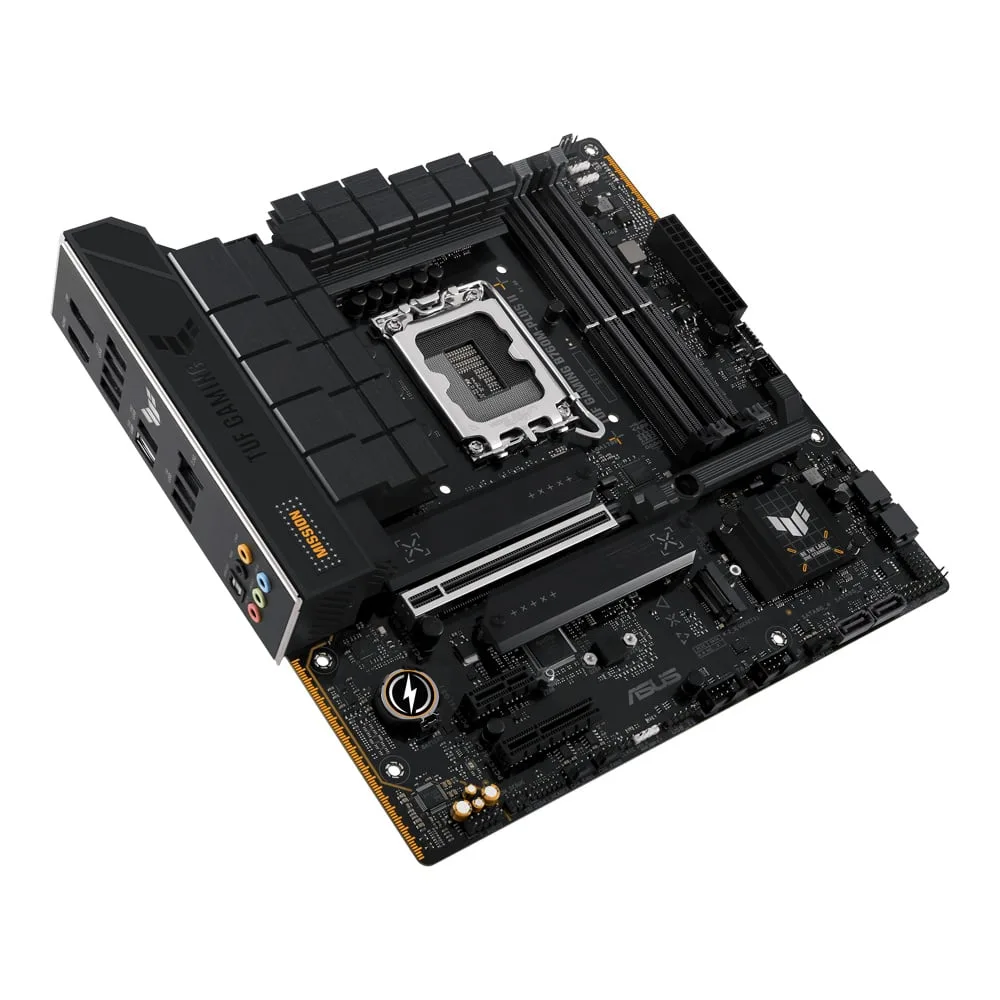

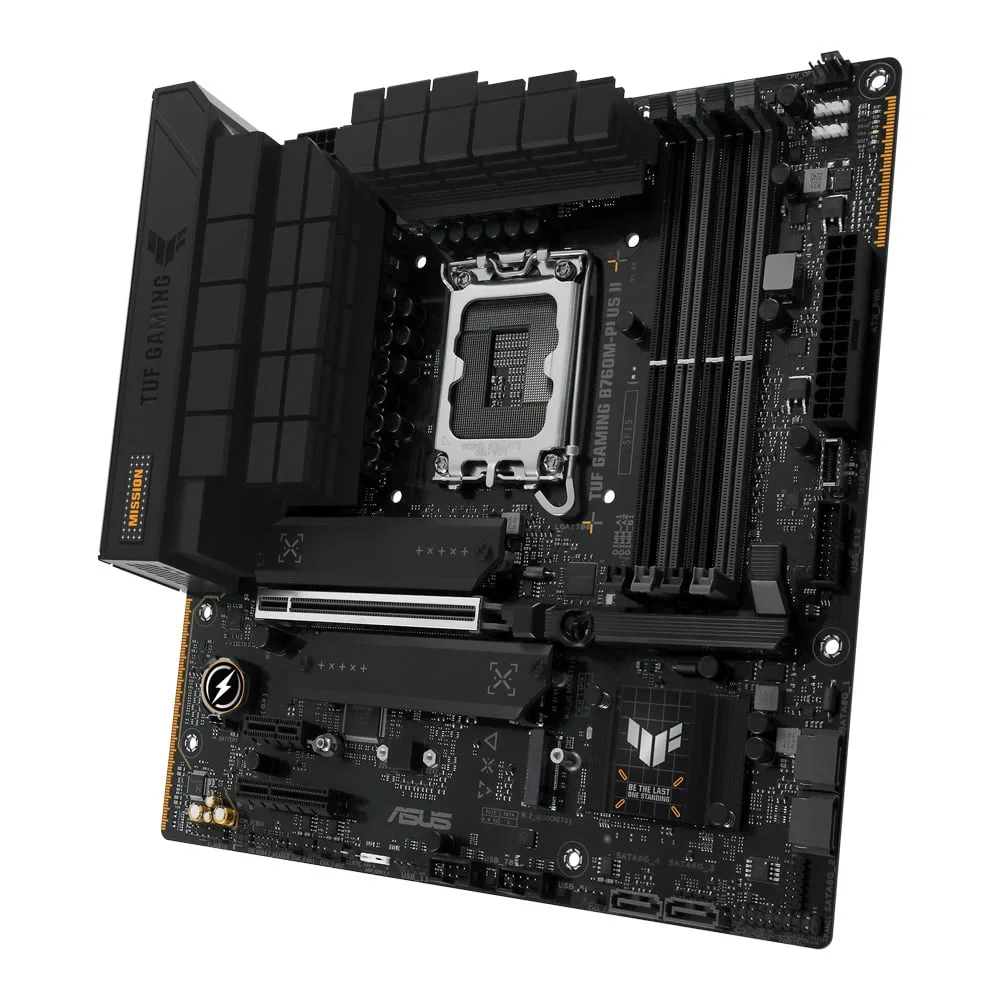

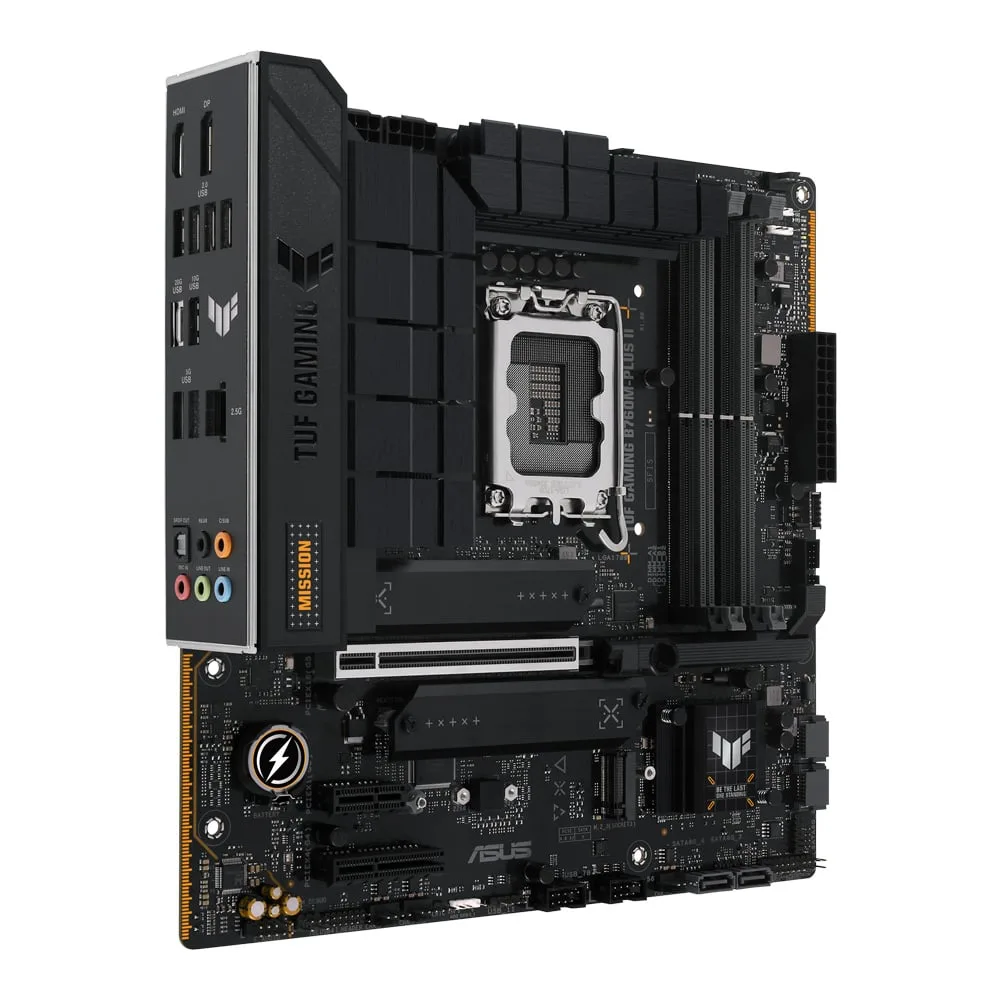

MAINBOARD (เมนบอร์ด) ASUS TUF GAMING B760M-PLUS II (SOCKET LGA 1700 DDR5 MICRO-ATX)
฿5,080.00
| Product Type | Mainboard |
| Brand | Asus |
| Model | TUF GAMING B760M-PLUS II |
| Socket | 1700 (12th Gen – Alder Lake) , 1700 (13th Gen – Raptor Lake) , 1700 (14th Gen – Raptor Lake Refresh) |
| Wattage | 150W |
| Chipset | Intel B760 |
| Series | Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium |
| Slot | 4 |
| Memory Type | DDR5 |
| Max. Capacity | 192 GB |
| Speed | 4800 , 5000 , 5000 (OC) , 5200 , 5200 (OC) , 5400 , 5400 (OC) , 5600 , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7400 (OC) , 7600 (OC) , 7800 (OC) |
| Graphic | Requires a CPU with Integrated Graphics. — • 1 x DisplayPort** • 1 x HDMI port*** — * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors’ or graphic cards’ resolution. |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Audio Detail | Audio Features • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking • Supports up to 24-Bit/192 kHz playback • Audio Shielding • Rear optical S/PDIF out port • Premium audio capacitors • Dedicated audio PCB layers |
| SATA 2 | – Port |
| SATA 3 | 4 Port |
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| M.2 | 3 x M.2 slots — Intel Core Processors (14th & 13th & 12th Gen) • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) — Intel B760 Chipset** • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) Port |
| Details | Intel Core Processors (14th & 13th & 12th Gen)* • 1 x PCIe 5.0 x16 slot — Intel B760 Chipset • 1 x PCIe 4.0 x4 slot • 1 x PCIe 3.0 x1 slot — – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Slot | 1 x PCIe 3.0 x1 Slot , 1 x PCIe 4.0 x4 Slot , 1 x PCIe 5.0 x16 Slot |
| LAN | Realtek 2.5Gb Ethernet |
| LAN Speed | 100/1000/2500 Mbps |
| Wireless | No |
| USB 2.0 | 4 Port |
| USB 3.0 | – Port |
| USB 3.1 | – Port |
| Serial | – Port |

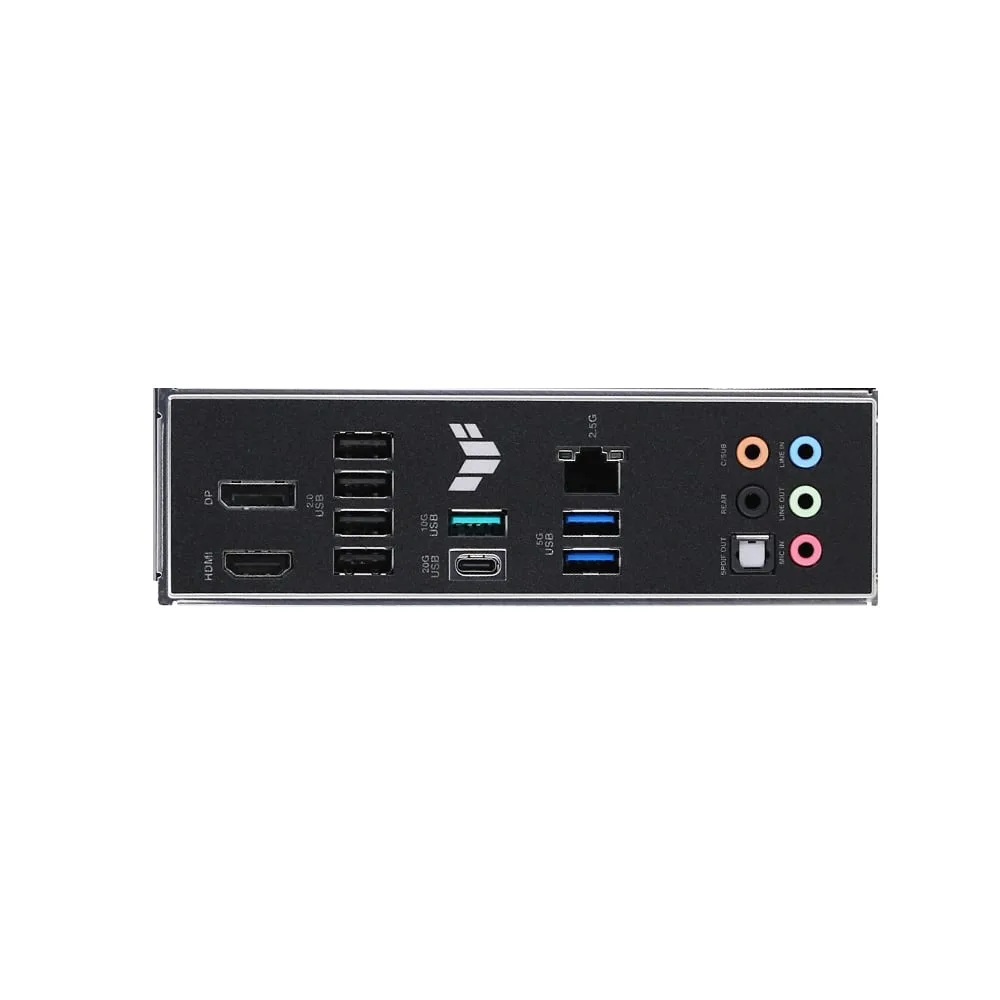

| USB 3.2 | 1 x USB 20Gbps (1 x USB Type-C) 1 x USB 10Gbps (1 x Type-A) 2 x USB 5Gbps (2 x Type-A) Port |
| D-Sub (VGA) | – Port |
| DVI | – Port |
| HDMI | 1 Port |
| DisplayPort | 1 Port |
| Audio | 5 x Audio jacks 1 x Optical S/PDIF out Port |
| PS/2 | No |
| Additional | No |
| LAN | 1 Port |
| Form Factor | Micro-ATX |
| Power Connector | 24 + 8 + 8 Pin |
| Dimension | 24.4 x 24.4 cm |
| การรับประกัน | 3 Years |
| Product Type | Mainboard |
|---|---|
| Brand | Asus |
| Model | TUF GAMING B760M-PLUS II |
