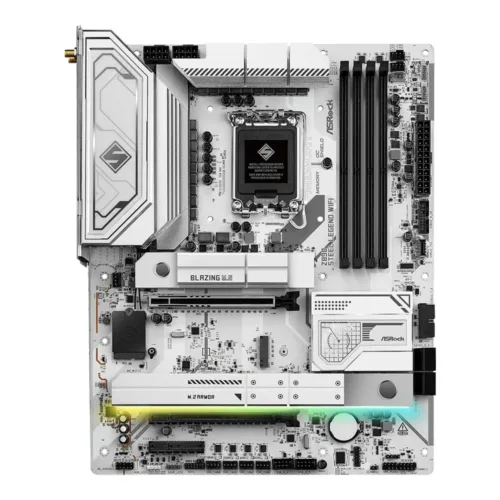

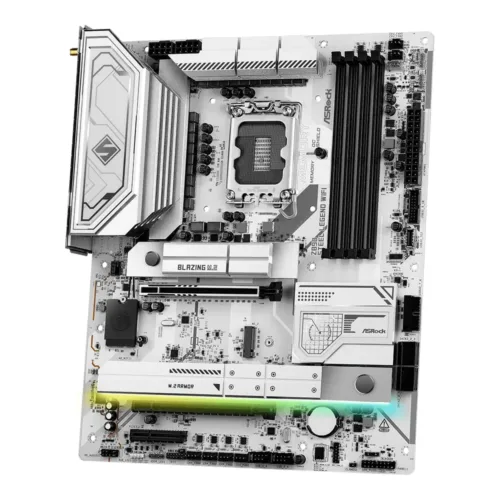

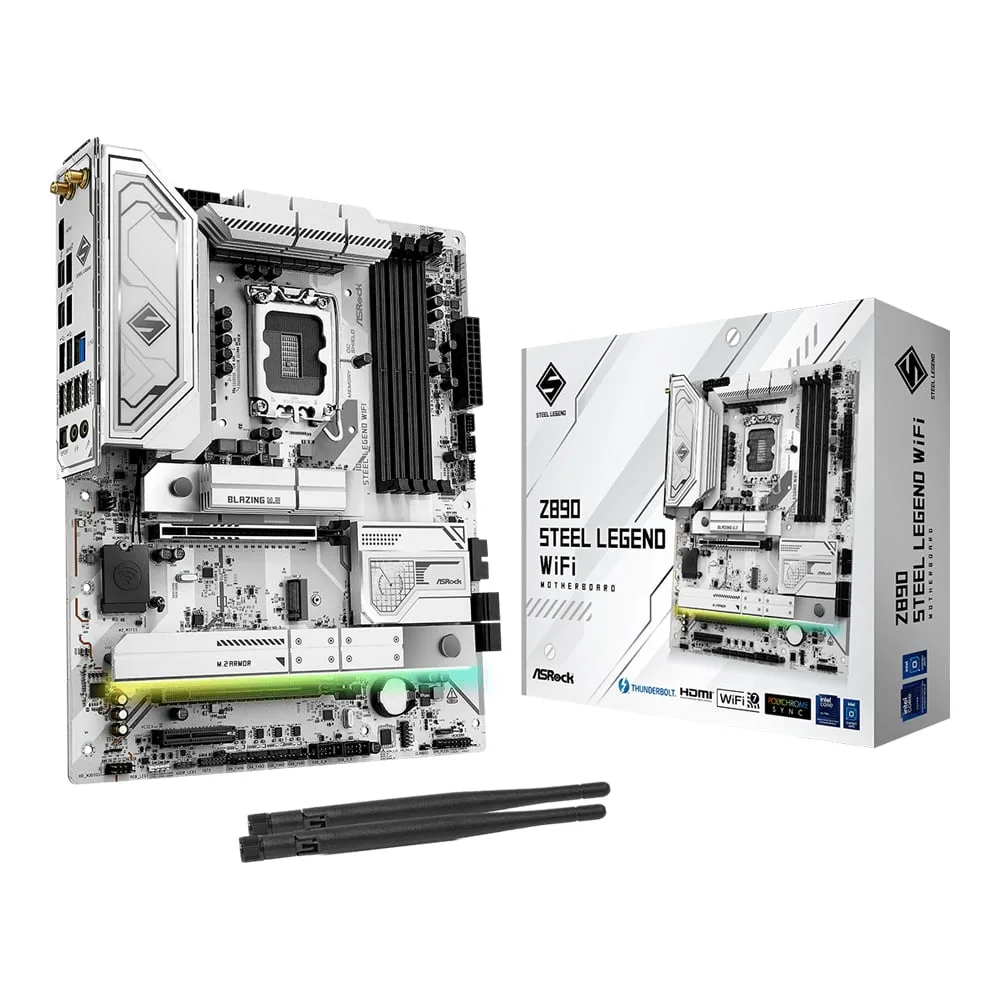

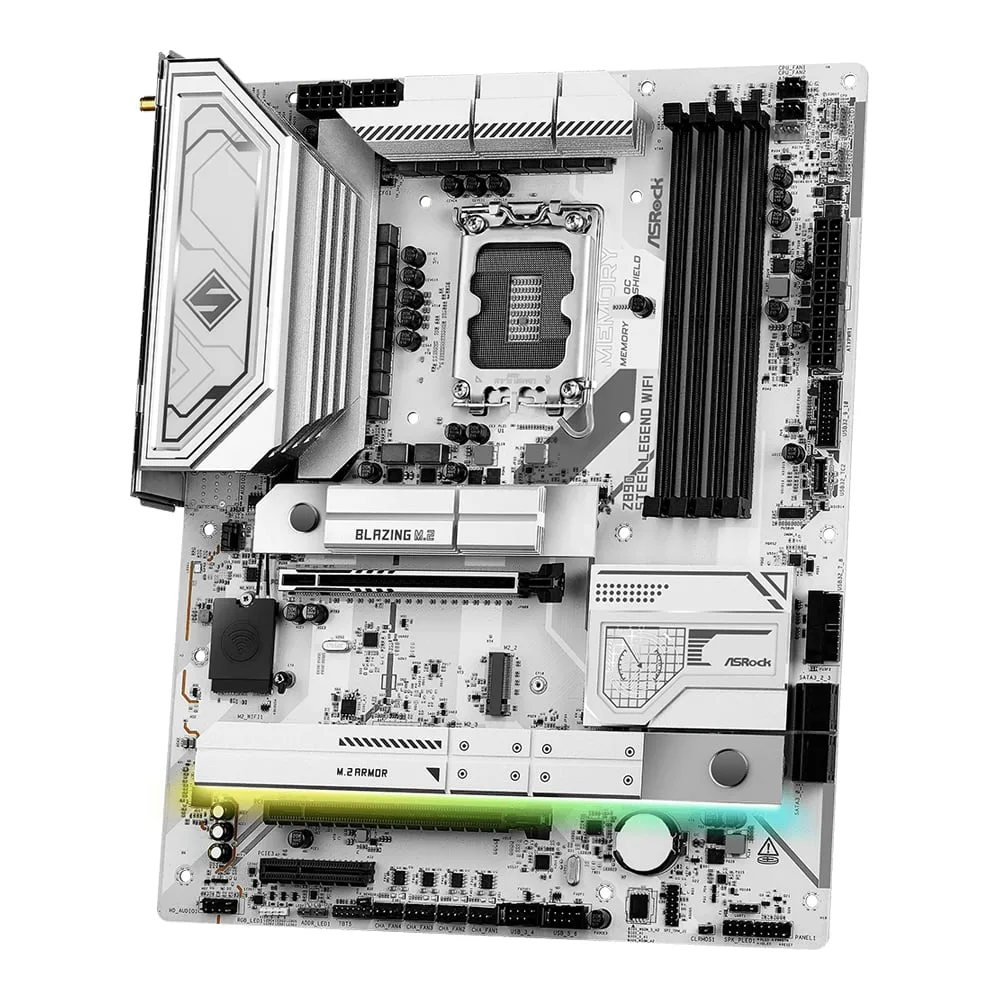

MAINBOARD (เมนบอร์ด) ASROCK Z890 STEEL LEGEND WIFI (INTEL SOCKET 1851 DDR5 ATX)
฿11,490.00
| Product Type | Mainboard |
| Brand | Asrock |
| Model | Z890 Steel Legend WiFi |
| Socket | 1851 (Arrow Lake-S) |
| Wattage | 125W |
| Chipset | Intel Z890 |
| Series | Core Ultra 5 , Core Ultra 7 , Core Ultra 9 |
| Slot | 4 |
| Memory Type | DDR5 |
| Max. Capacity | 256 GB |
| Speed | 4400 , 4800 , 5200 (OC) , 5600 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7600 (OC) , 7800 (OC) , 8000 (OC) , 8200 (OC) , 8400 (OC) |
| Graphic | Requires a CPU with Integrated Graphics. Intel Xe LPG Graphics Architecture — • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz — • 2 x Intel Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz* — * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Supports two 4K displays or one 8K display Only the CPU’s embedded graphics can be displayed through Thunderbolt ports. If you want to display to a Thunderbolt monitor, please use CPU models with embedded graphics. |
| Audio | Realtek ALC1220 Audio Codec |
| Audio Detail | – 7.1 CH HD Audio with Content Protection – Impedance Sensing on Rear Out port – Individual PCB Layers for R/L Audio Channel – Nahimic Audio |
| SATA 2 | – Port |
| SATA 3 | 4 Port |
| RAID | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| M.2 | 4 x M.2 Sockets — CPU: • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* — Chipset: • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* • 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* — * Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks Port |
| Details | CPU: • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* — Chipset: • 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* • 1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode* • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) — * PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots. Supports NVMe SSD as boot disks |
| Slot | 1 x PCIe 4.0 x16 Slot , 1 x PCIe 4.0 x4 Slot , 1 x PCIe 5.0 x16 Slot |
| LAN | Dragon RTL8125BG (2.5 Gigabit LAN) |
| LAN Speed | 10 / 100 / 1000 / 2500 Mbps |
| Wireless | – 802.11be 2×2 Wi-Fi 7 Module – Supports IEEE 802.11a/b/g/n/ac/ax/axe/be – Supports 2.4GHz/5GHz/6GHz* frequency band – Supports 320MHz channel bandwidth with 6GHz* frequency band – 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.4 – Supports MU-MIMO — * Wi-Fi 7 (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available. |
| USB 2.0 | 2 Port |
| USB 3.0 | – Port |
| USB 3.1 | – Port |
| Serial | – Port |
| USB 3.2 | 2 x Thunderbolt 4 Type-C (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)* 2 x USB 3.2 Gen2 Type-A (10 Gb/s) 4 x USB 3.2 Gen1 Type-A — * Supports USB PD 3.0 up to 5V@3A (15W) charging Port |
| D-Sub (VGA) | – Port |
| DVI | – Port |
| HDMI | 1 Port |
| DisplayPort | – Port |
| Audio | 2 x Audio jacks 1 x Optical S/PDIF out Port |
| PS/2 | No |
| Additional | 2 x Antenna Ports 1 x BIOS Flashback Button |
| LAN | 1 Port |
| Form Factor | ATX |
| Power Connector | 24 + 8 + 8 Pin |
| Dimension | 30.5 x 24.4 cm |
| การรับประกัน | 3 Years |
| Product Type | Mainboard |
|---|---|
| Brand | Asrock |
| Model | Z890 Steel Legend WiFi |
