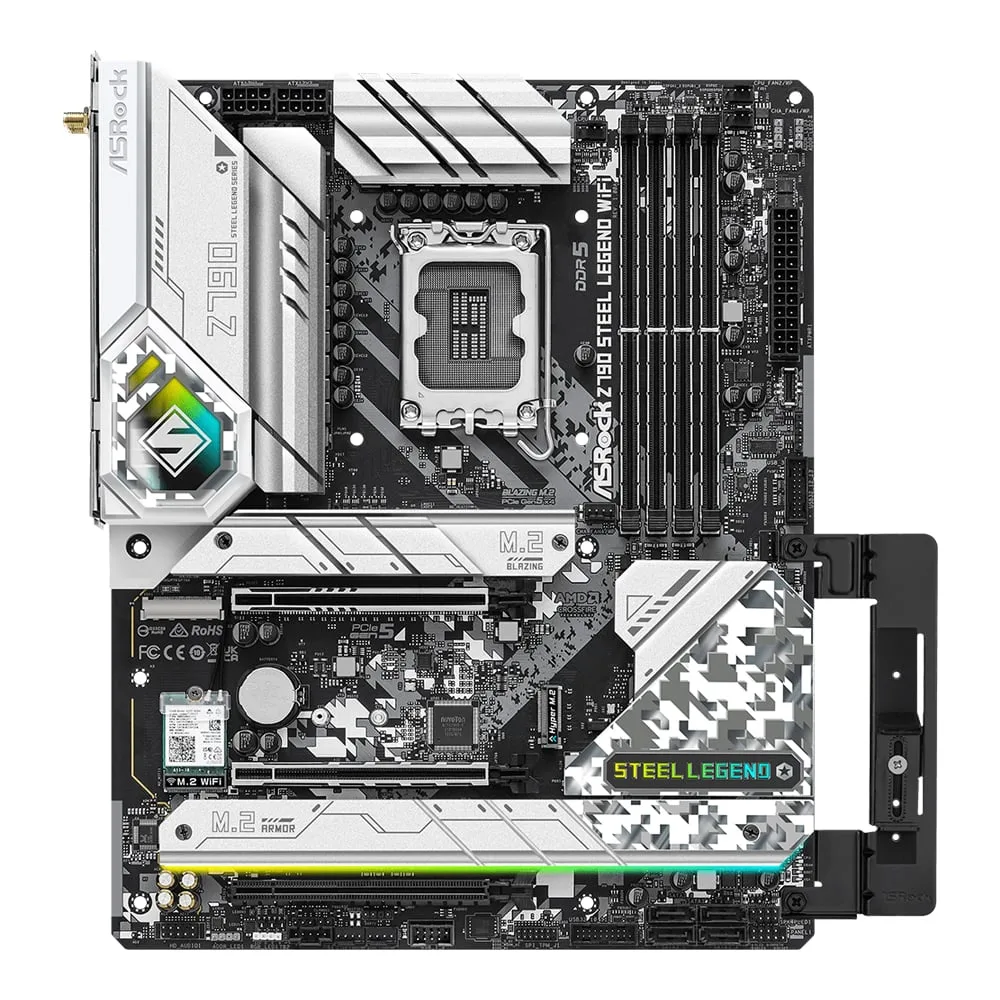

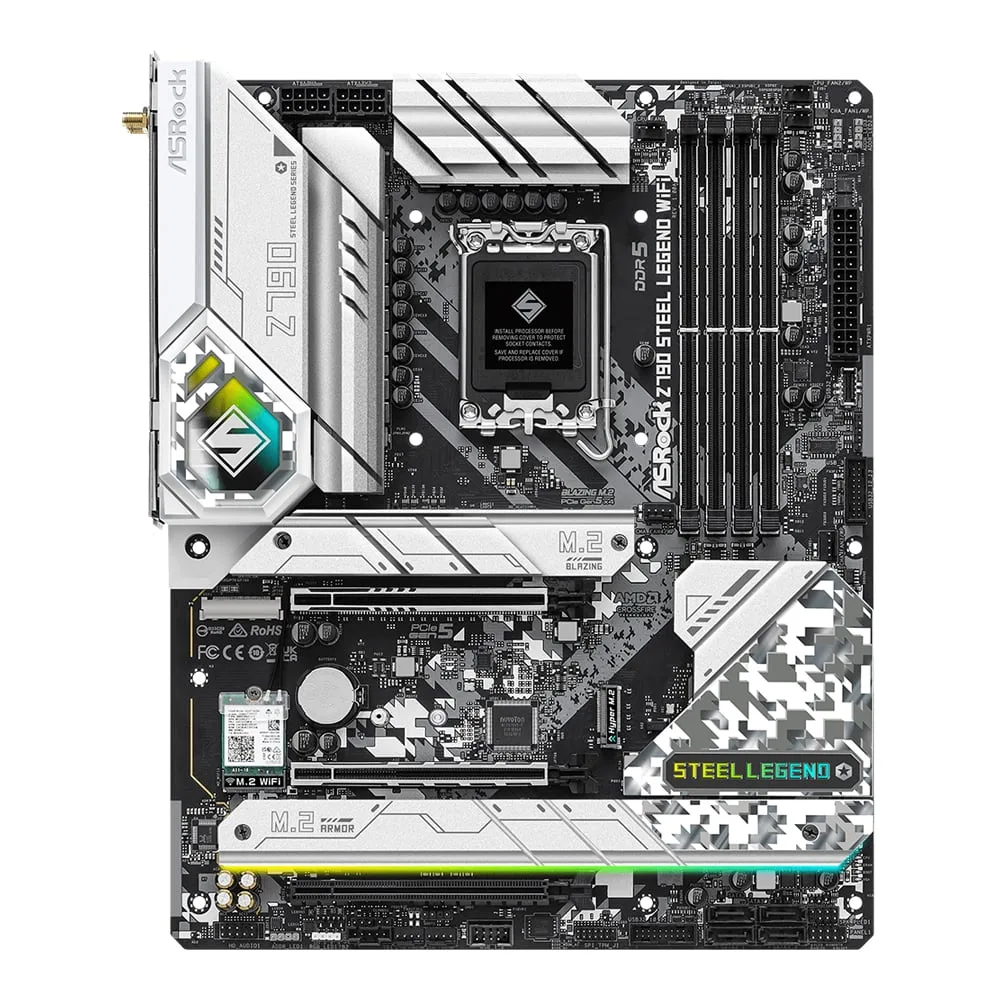

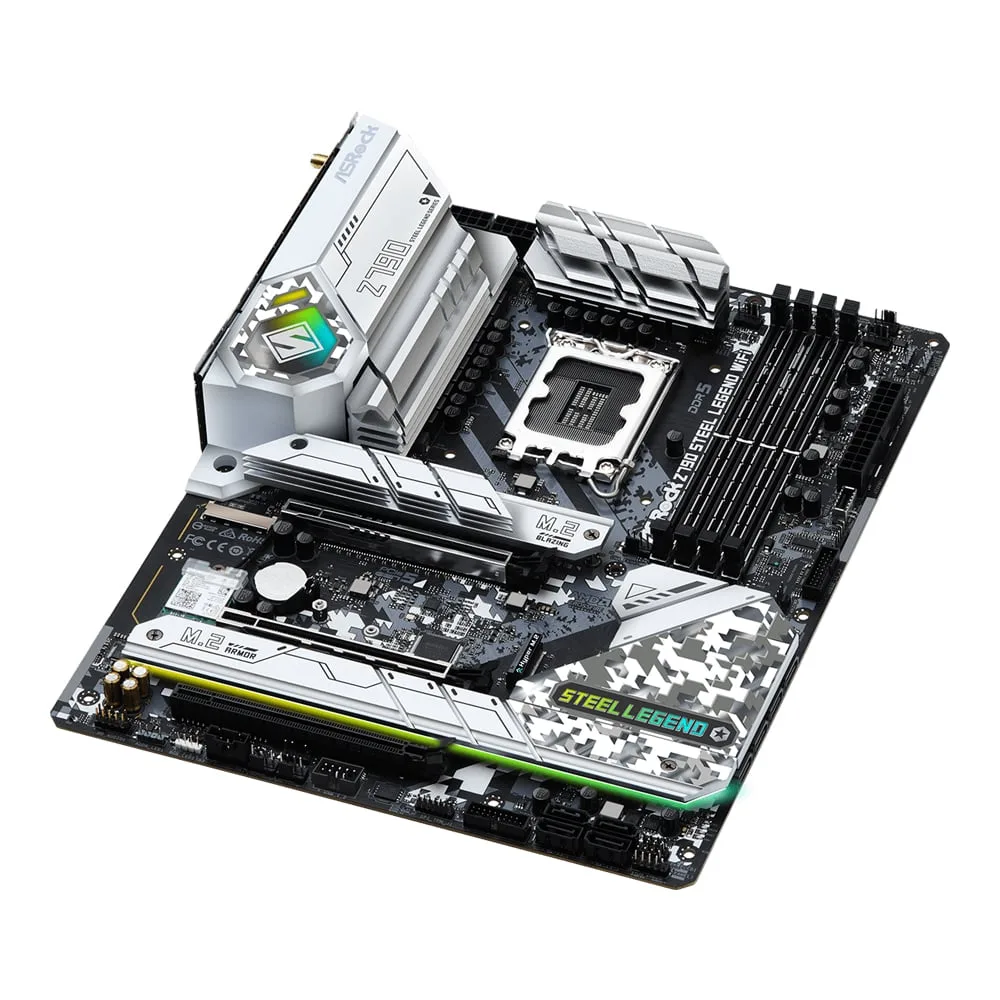

MAINBOARD (เมนบอร์ด) ASROCK Z790 STEEL LEGEND WIFI (SOCKET LGA 1700) (ATX)
฿9,890.00
| Product Type | Mainboard |
| Brand | Asrock |
| Model | Z790 Steel Legend WiFi |
| Socket | 1700 (12th Gen – Alder Lake) , 1700 (13th Gen – Raptor Lake) , 1700 (14th Gen – Raptor Lake Refresh) |
| Wattage | 150W |
| Chipset | Intel Z790 |
| Series | Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium |
| Slot | 4 |
| Memory Type | DDR5 |
| Max. Capacity | 128 GB |
| Speed | 4400 , 4800 , 5200 (OC) , 5600 (OC) , 6000 (OC) |
| Graphic | Integrated Graphics Processor (Depends on CPU) |
| Audio | Realtek ALC897 |
| Audio Detail | 7.1 CH HD Audio |
| SATA 2 | – Port |
| SATA 3 | 8 Port |
| RAID | RAID 0, 1, 5 for NVMe Storage RAID 0, 1, 5, 10 for SATA Storage |
| M.2 | 5 x M.2 Slot(s) — CPU: • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode • 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode — Chipset: • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode • 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode • 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Port |
| Details | Supports AMD CrossFire |
| Slot | 1 x PCIe 3.0 x16 Slot , 1 x PCIe 4.0 x16 Slot , 1 x PCIe 5.0 x16 Slot |
| LAN | Dragon RTL8125BG |
| LAN Speed | 10/100/1000/2500 Mbps |
| Wireless | Wi-Fi 6E (802.11ax) Bluetooth |
| USB 2.0 | – Port |
| USB 3.0 | – Port |
| USB 3.1 | – Port |
| Serial | – Port |

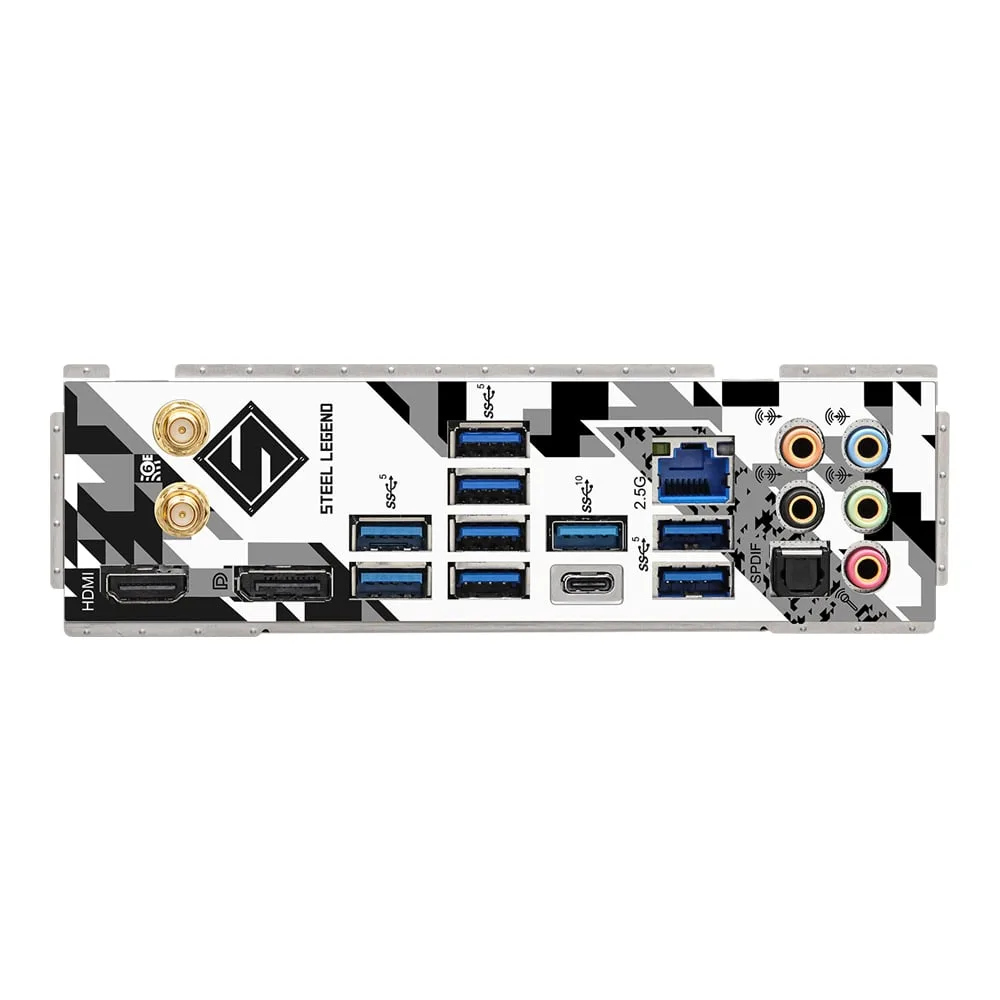

| USB 3.2 | 1 x USB 3.2 Gen 2 Type-A 1 x USB 3.2 Gen 2 Type-C 8 x USB 3.2 Gen 1 Type-A Port |
| D-Sub (VGA) | – Port |
| DVI | – Port |
| HDMI | 1 Port |
| DisplayPort | 1 Port |
| Audio | 5 x Audio Jacks 1 x Optical S/PDIF Out Port |
| PS/2 | No |
| Additional | 2 x Antenna Ports |
| LAN | 1 Port |
| Form Factor | ATX |
| Power Connector | 24 + 8 + 8 Pin |
| Dimension | 30.5 x 24.4 cm |
| การรับประกัน | 3 Years |
| Product Type | Mainboard |
|---|---|
| Brand | Asrock |
| Model | Z790 Steel Legend WiFi |
