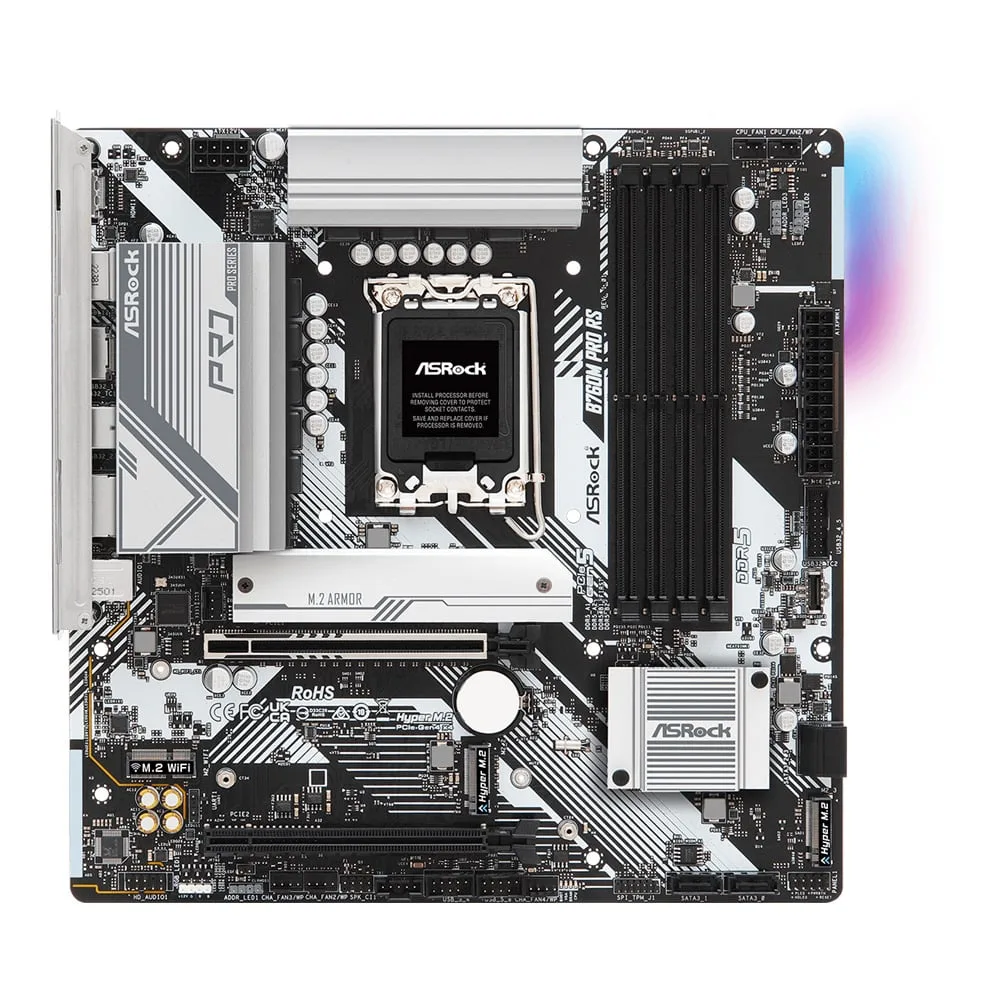

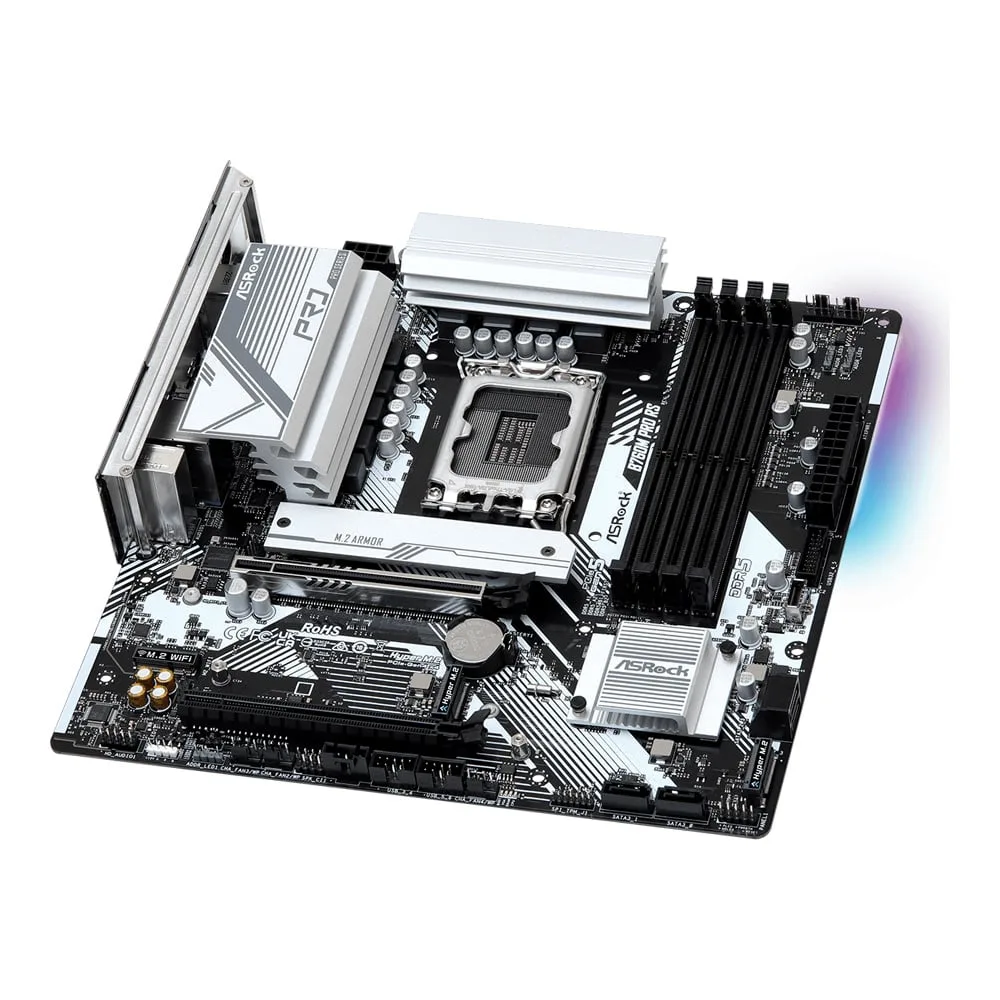

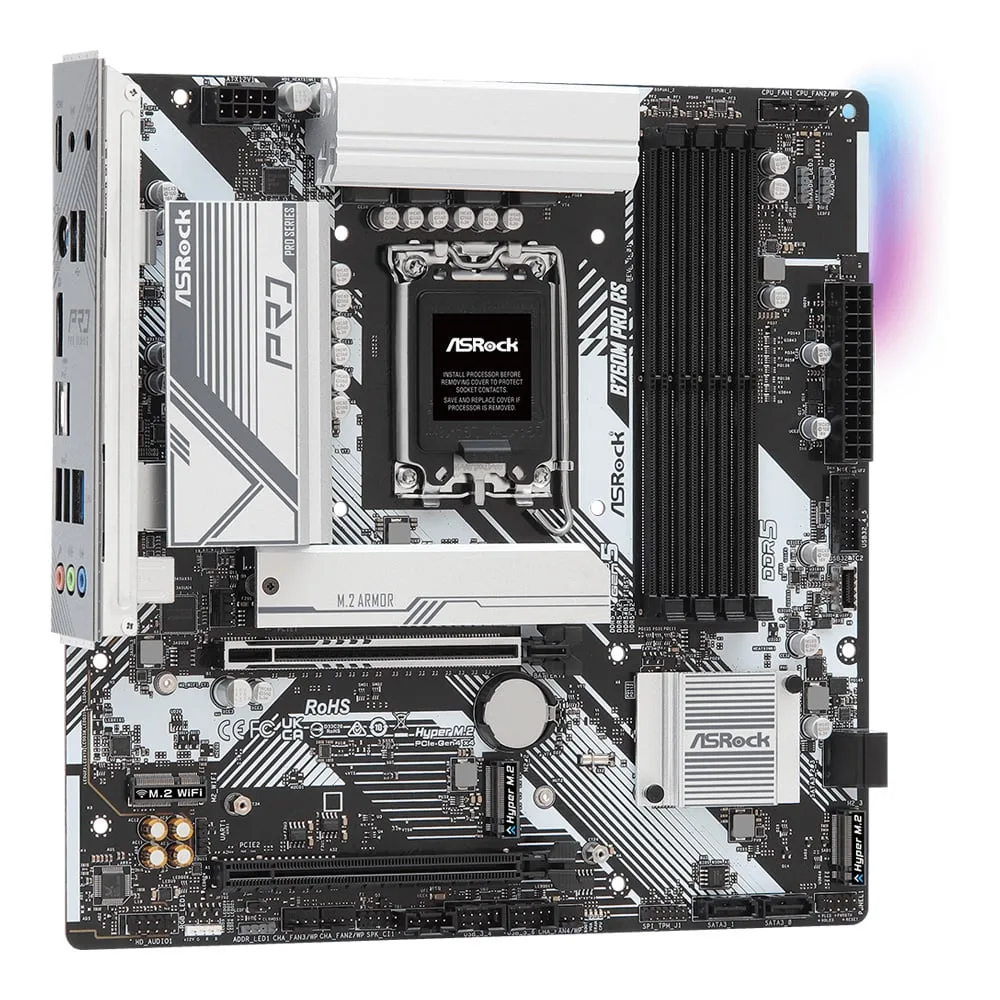

MAINBOARD (เมนบอร์ด) ASROCK B760M PRO RS (DDR5) (SOCKET LGA 1700) (MICRO-ATX)
฿3,980.00
| Product Type | Mainboard |
| Brand | Asrock |
| Model | B760M Pro RS |
| Socket | 1700 (12th Gen – Alder Lake) , 1700 (13th Gen – Raptor Lake) , 1700 (14th Gen – Raptor Lake Refresh) |
| Wattage | 150W |
| Chipset | Intel B760 |
| Series | Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium |
| Slot | 4 |
| Memory Type | DDR5 |
| Max. Capacity | 192 GB |
| Speed | 4400 , 4800 , 5200 (OC) , 5600 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) |
| Graphic | Requires a CPU With Integrated Graphics. — – Intel Xe Graphics Architecture (Gen 12) • 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz — *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
| Audio | Realtek ALC897 |
| Audio Detail | 7.1 CH HD Audio |
| SATA 2 | – Port |
| SATA 3 | 4 Port |
| RAID | RAID 0, RAID 1, RAID 5, RAID 10 for SATA storage devices |
| M.2 | 3 x M.2 Socket(s) — CPU: • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* — Chipset: • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Port |
| Details | CPU: • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* — Chipset: • 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) — • Supports AMD CrossFire *Supports NVMe SSD as boot disks |
| Slot | 1 x PCIe 3.0 x16 Slot , 1 x PCIe 5.0 x16 Slot |
| LAN | Dragon RTL8125BG |
| LAN Speed | 10/100/1000/2500 Mbps |
| Wireless | No |
| USB 2.0 | 2 Port |
| USB 3.0 | – Port |
| USB 3.1 | – Port |
| Serial | – Port |
| USB 3.2 | 1 x USB 3.2 Gen1 Type-C 3 x USB 3.2 Gen1 Type-A Port |
| D-Sub (VGA) | – Port |
| DVI | – Port |
| HDMI | 1 (Version 2.1) Port |
| DisplayPort | 1 (Version 1.4) Port |
| Audio | 3 Port |
| PS/2 | 1 (Keyboard/Mouse combo) Port |
| Additional | 2 x Antenna Mounting Points |
| LAN | 1 Port |
| Form Factor | Micro-ATX |
| Power Connector | 24 + 8 Pin |
| Dimension | 24.4 x 24.4 cm |
| การรับประกัน | 3 Years |
| Product Type | Mainboard |
|---|---|
| Brand | Asrock |
| Model | B760M Pro RS |
