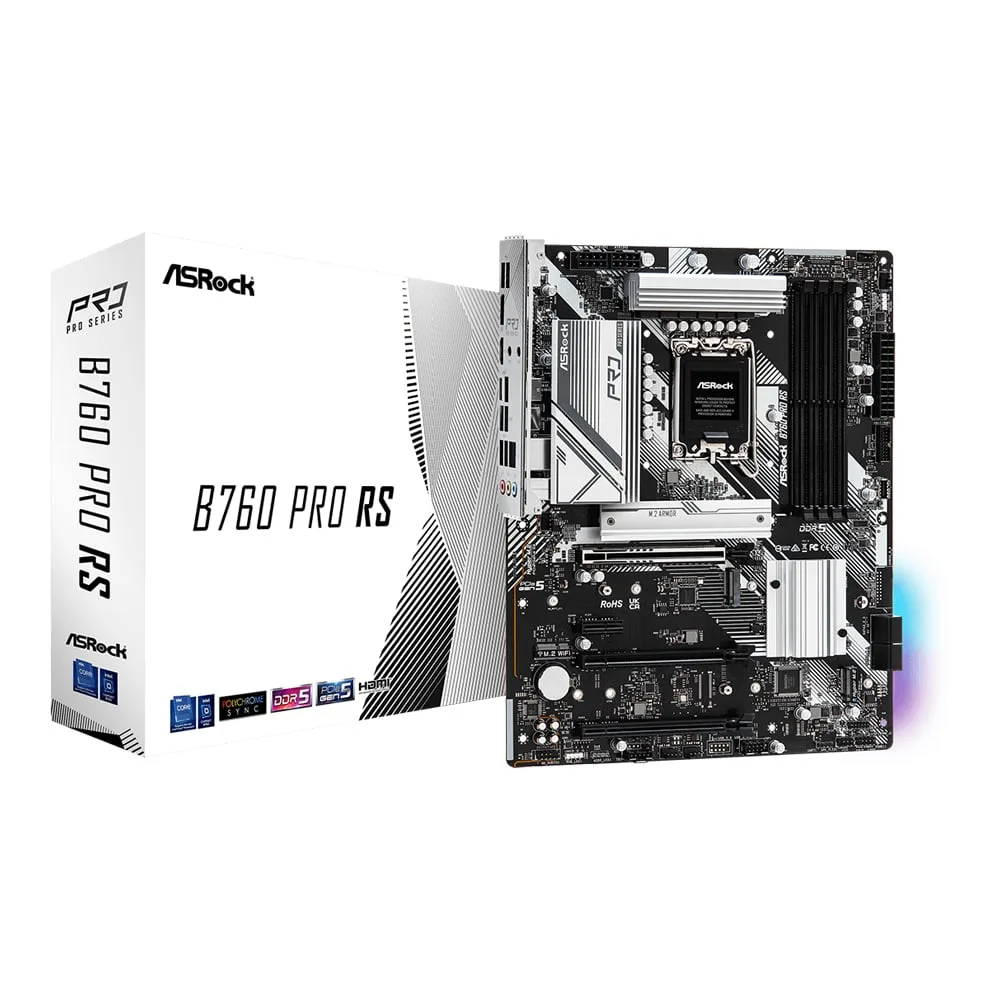

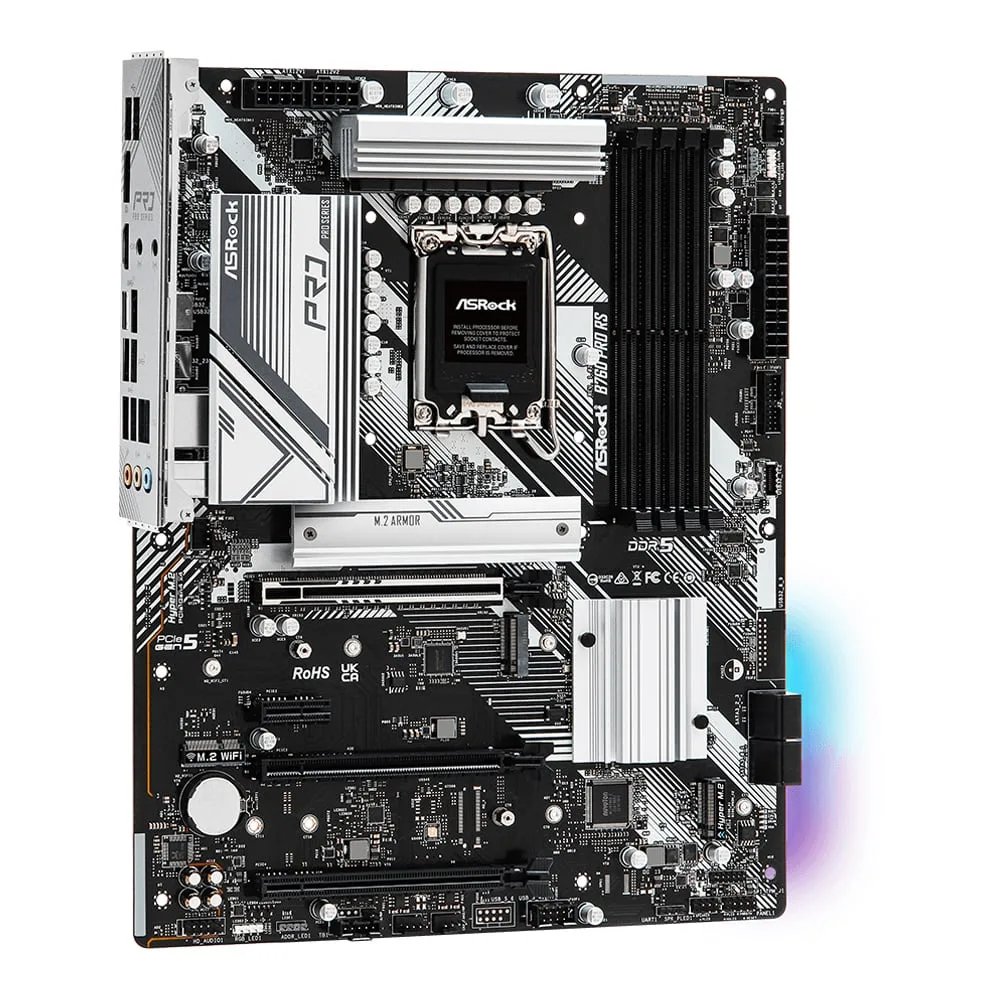

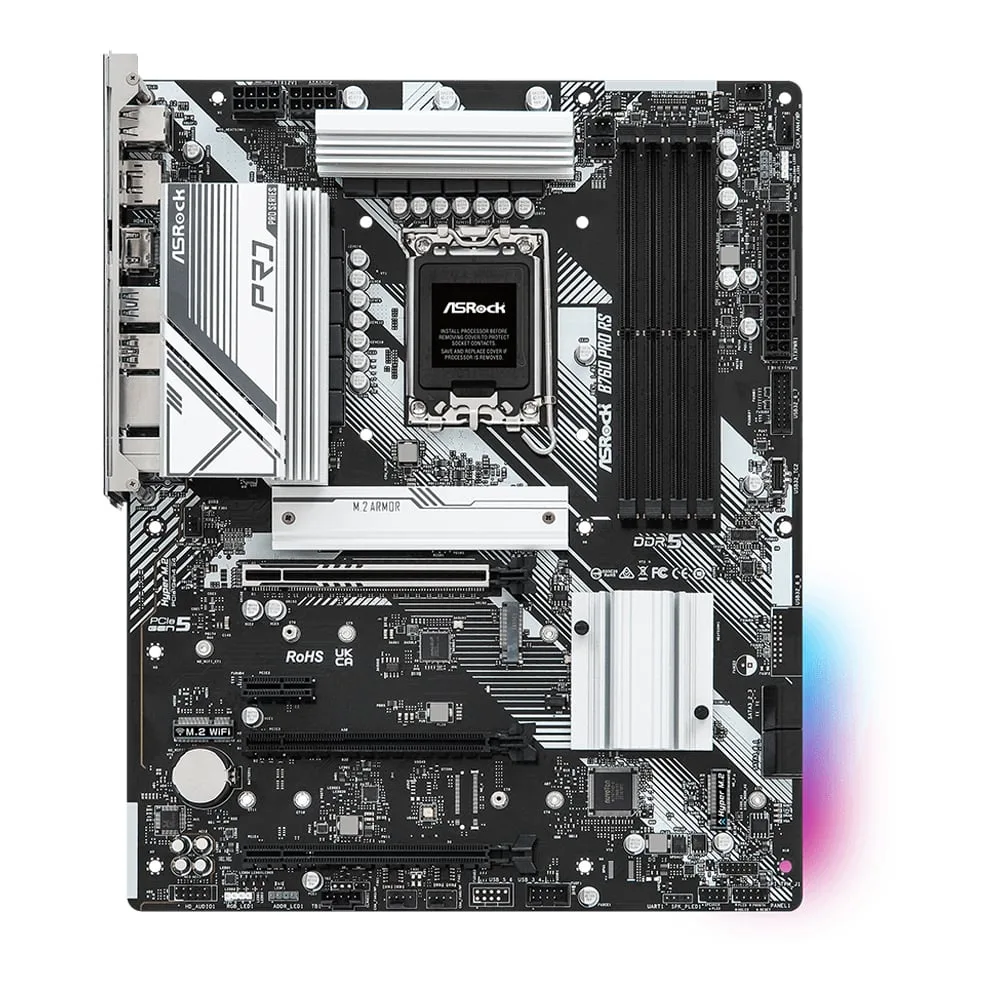

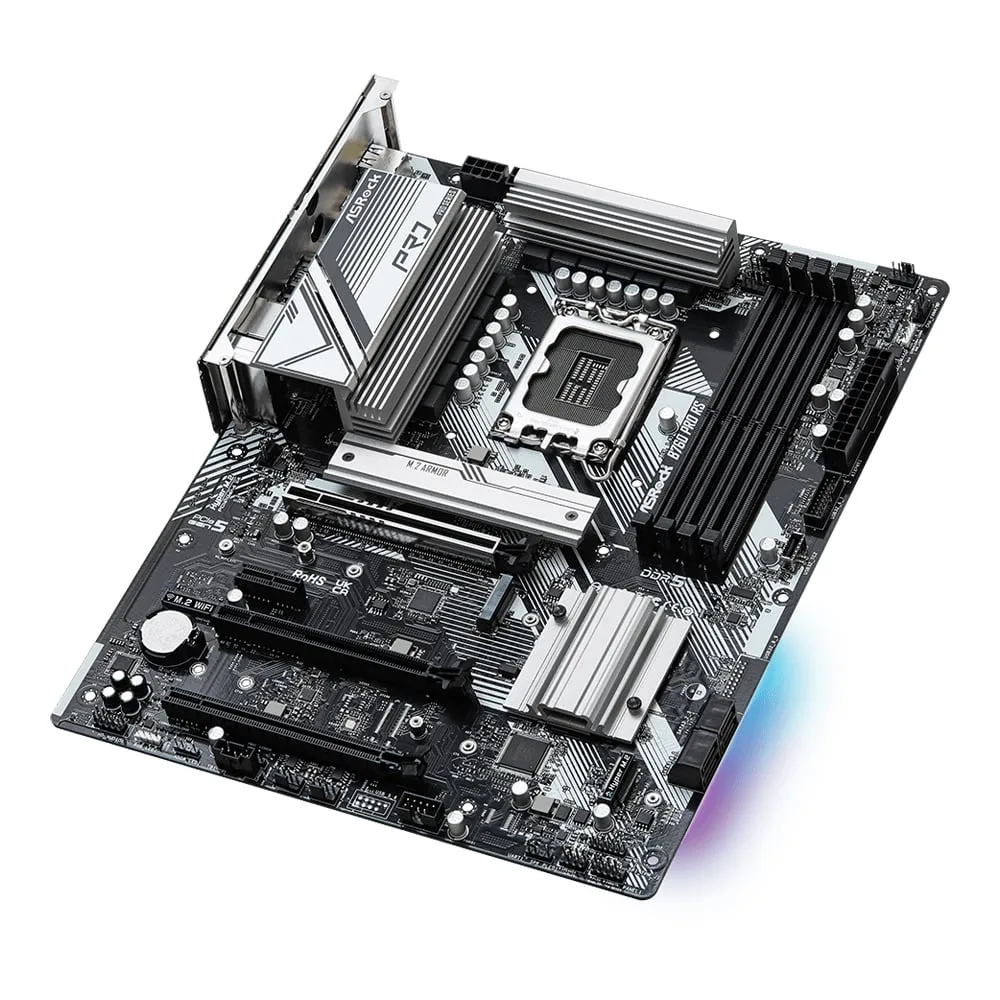

MAINBOARD (เมนบอร์ด) ASROCK B760 PRO RS (DDR5) (SOCKET LGA 1700) (ATX)
฿4,280.00
| Product Type | Mainboard |
| Brand | Asrock |
| Model | B760 Pro RS |
| Socket | 1700 (12th Gen – Alder Lake) , 1700 (13th Gen – Raptor Lake) , 1700 (14th Gen – Raptor Lake Refresh) |
| Wattage | 125W |
| Chipset | Intel B760 |
| Series | Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium |
| Slot | 4 |
| Memory Type | DDR5 |
| Max. Capacity | 128 GB |
| Speed | 4400 , 4800 , 5200 , 5200 (OC) , 5600 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) |
| Graphic | Integrated Graphics Processor (Depends on CPU) |
| Audio | Realtek ALC897 |
| Audio Detail | 7.1 CH HD Audio |
| SATA 2 | – Port |
| SATA 3 | 4 Port |
| RAID | RAID 0, 1, 5, 10 for SATA Storage |
| M.2 | 3 x M.2 Socket(s) — CPU: • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode — Chipset: • 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Port |
| Details | Supports AMD CrossFire |
| Slot | 1 x PCIe 3.0 x1 Slot , 1 x PCIe 3.0 x16 Slot , 1 x PCIe 4.0 x16 Slot , 1 x PCIe 5.0 x16 Slot |
| LAN | Dragon RTL8125BG |
| LAN Speed | 10/100/1000/2500 Mbps |
| Wireless | No |
| USB 2.0 | 2 Port |
| USB 3.0 | – Port |
| USB 3.1 | – Port |
| Serial | – Port |

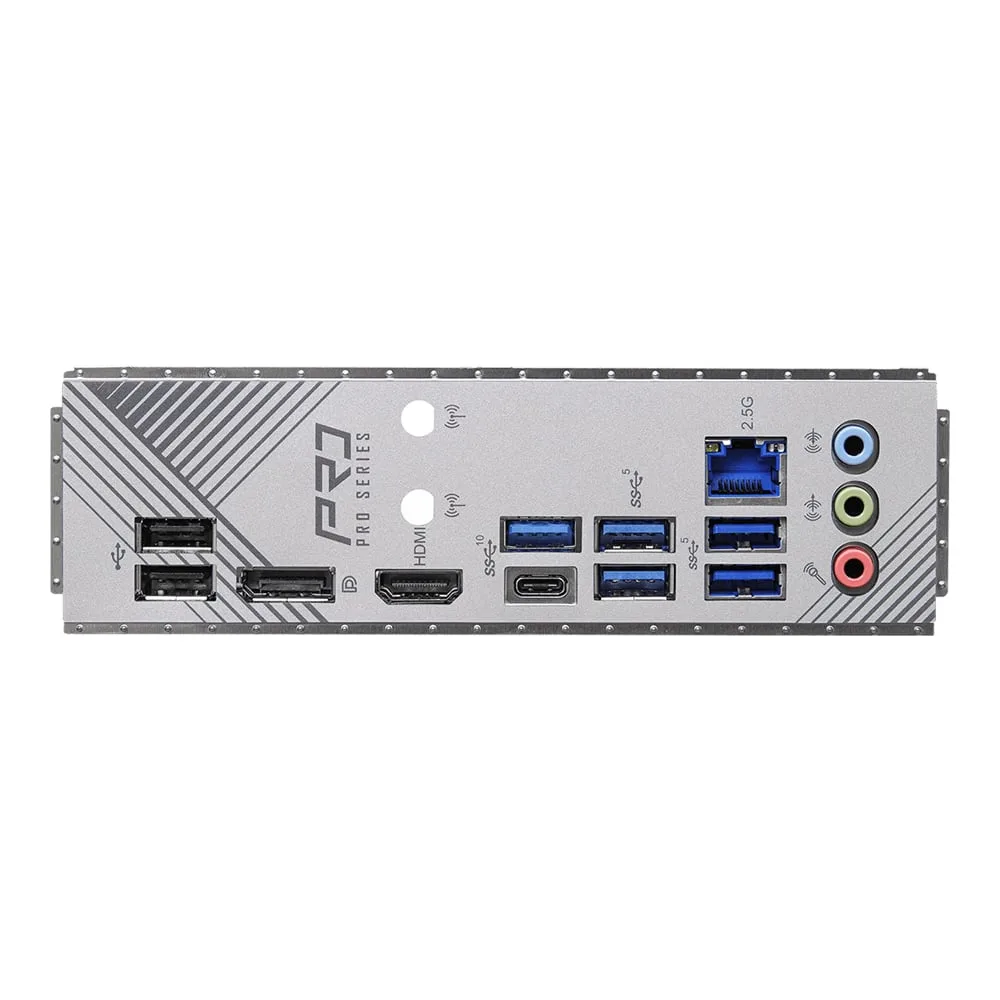

| USB 3.2 | 1 x USB 3.2 Gen 2 Type-A 1 x USB 3.2 Gen 2 Type-C 4 x USB 3.2 Gen 1 Type-A Port |
| D-Sub (VGA) | – Port |
| DVI | – Port |
| HDMI | 1 Port |
| DisplayPort | 1 (Version 1.4) Port |
| Audio | 3 Port |
| PS/2 | No |
| Additional | 2 x Antenna Mounting Points |
| LAN | 1 Port |
| Form Factor | ATX |
| Power Connector | 24 + 8 + 8 Pin |
| Dimension | 30.5 x 24.4 cm |
| การรับประกัน | 3 Years |
| Product Type | Mainboard |
|---|---|
| Brand | Asrock |
| Model | B760 Pro RS |
