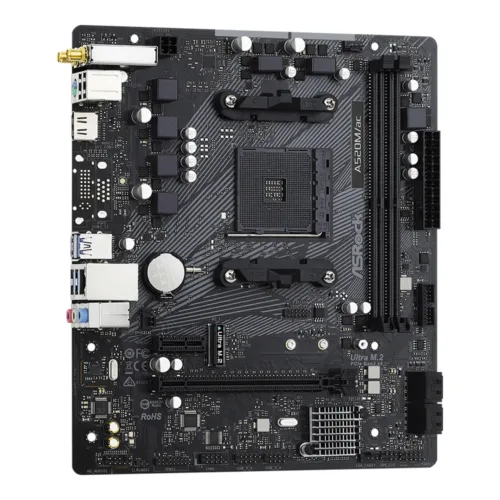

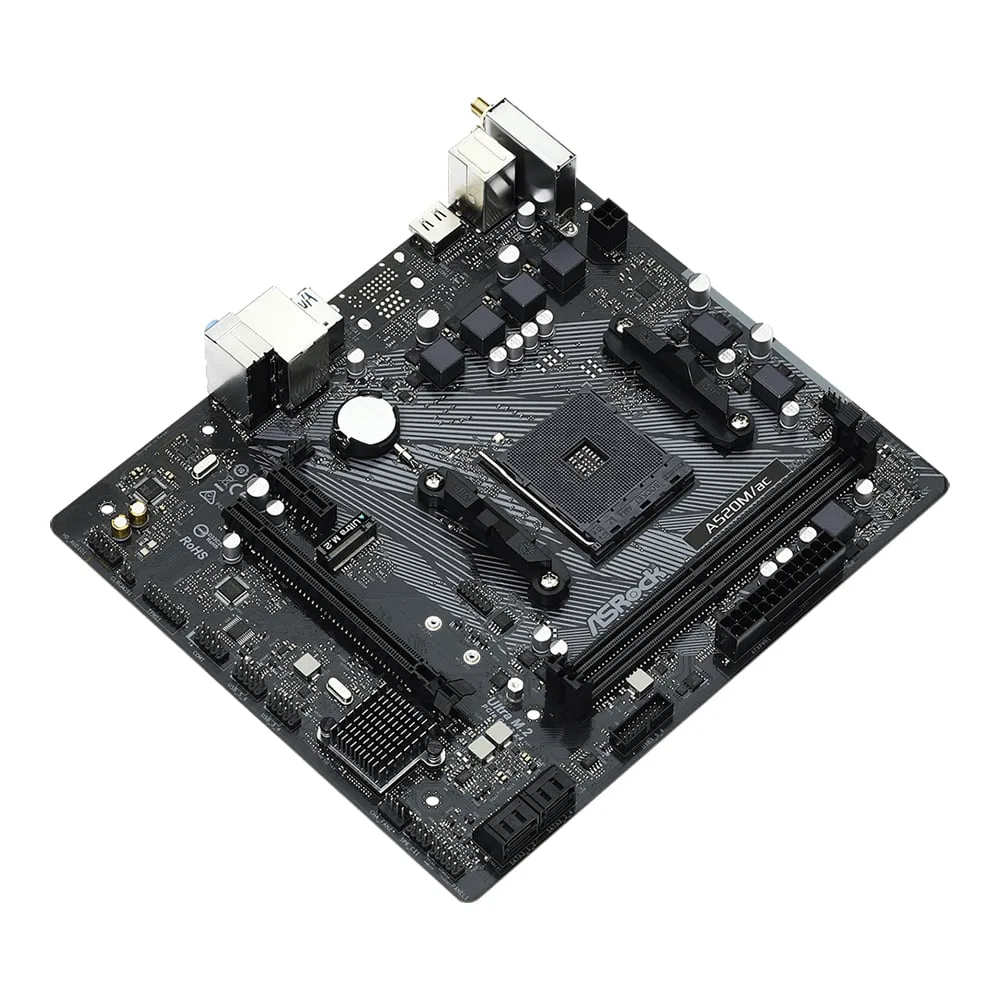

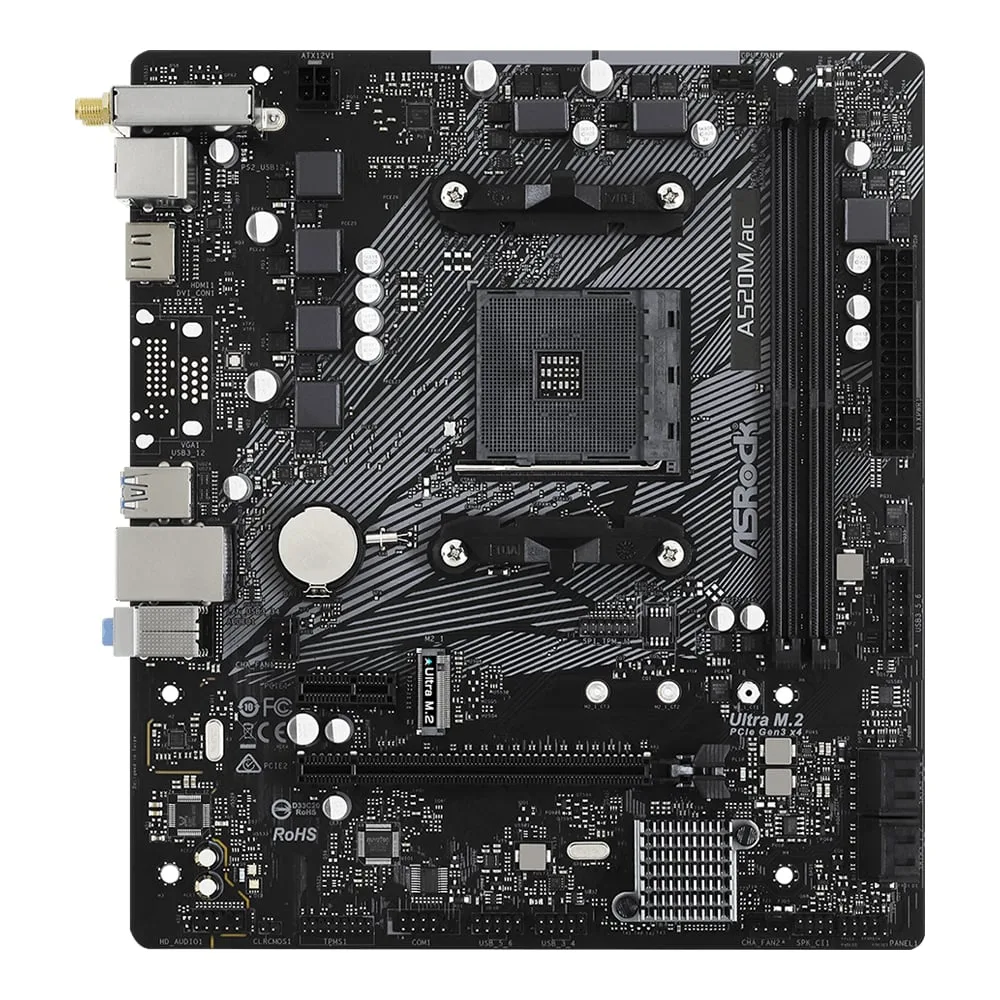

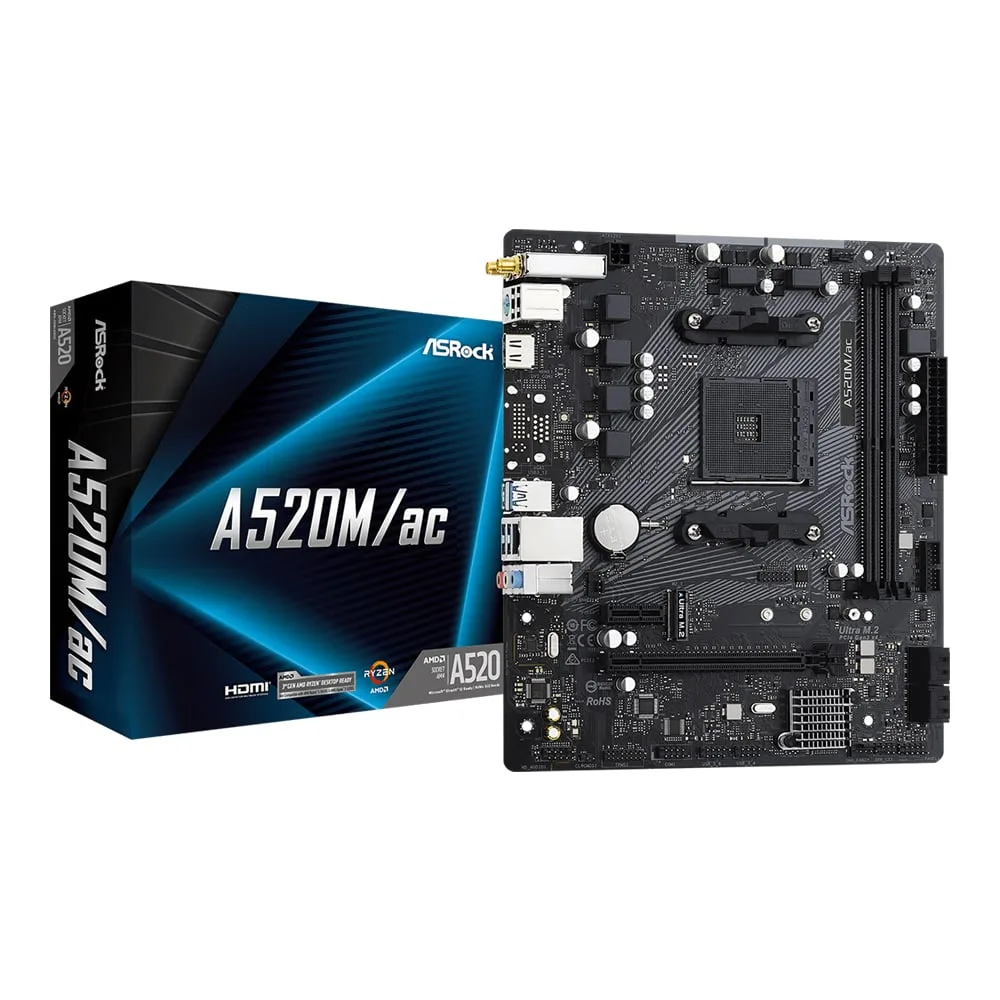

MAINBOARD (เมนบอร์ด) ASROCK A520M/AC (AMD SOCKET AM4 DDR4 MICRO-ATX)
฿1,980.00
| Product Type | Mainboard |
| Brand | Asrock |
| Model | A520M/ac |
| Socket | AM4 (3000 Series – Matisse) , AM4 (4000 G-Series – Renoir) , AM4 (5000 G-Series – Cezanne) , AM4 (5000 Series – Vermeer / Cezanne) |
| Wattage | 105W |
| Chipset | AMD A520 |
| Series | Ryzen 3 , Ryzen 5 , Ryzen 7 , Ryzen 9 |
| Slot | 2 |
| Memory Type | DDR4 |
| Max. Capacity | 64 GB |
| Speed | 2133 , 2400 , 2666 , 2933 , 3200 , 3200 (OC) , 3466 (OC) , 3600 (OC) , 3733 (OC) , 3800 (OC) , 3866 (OC) , 4000 (OC) , 4133 (OC) , 4200 (OC) , 4266 (OC) , 4333 (OC) , 4400 (OC) , 4466 (OC) , 4533 (OC) , 4600 (OC) |
| Graphic | Requires a CPU with Integrated Graphics. — – Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* – DirectX 12, Pixel Shader 5.0 – Shared memory default 2GB. Max Shared memory supports up to 16GB.** – Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) – Supports HDR (High Dynamic Range) with HDMI 2.1 – Supports HDCP 2.3 with HDMI 2.1 Port – Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port – Supports Microsoft PlayReady — *Actual support may vary by CPU **The Max shared memory 16GB requires 32GB system memory installed. |
| Audio | Realtek ALC887/897 Audio Codec |
| Audio Detail | – 7.1 CH HD Audio – Supports Surge Protection |
| SATA 2 | – Port |
| SATA 3 | 4 Port |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| M.2 | 1 x M.2 Socket — CPU: • 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* — *Supports NVMe SSD as boot disks NVMe SSD is not supported with AMD Athlon 3000G Processors Supports ASRock U.2 Kit Port |
| Details | • 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* • 1 x PCI Express 3.0 x1 Slot • 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O) — *Supports NVMe SSD as boot disks |
| Slot | 1 x PCIe 3.0 x1 Slot , 1 x PCIe 3.0 x16 Slot |
| LAN | Realtek RTL8111H |
| LAN Speed | 10/100/1000 Mbps |
| Wireless | Intel 802.11ac WiFi Module – Supports IEEE 802.11a/b/g/n/ac – Supports Dual-Band (2.4/5 GHz) – Supports high speed wireless connections up to 433Mbps – Supports Bluetooth 4.2 / 3.0 + High speed class II |
| USB 2.0 | 2 Port |
| USB 3.0 | – Port |
| USB 3.1 | – Port |
| Serial | – Port |
| USB 3.2 | 4 x USB 3.2 Gen1 Type-A Port |
| D-Sub (VGA) | – Port |
| DVI | – Port |
| HDMI | – Port |
| DisplayPort | – Port |
| Audio | 3 Port |
| PS/2 | 1 (Keyboard/Mouse combo) Port |
| Additional | 2 x Antenna Ports |
| LAN | 1 Port |
| Form Factor | Micro-ATX |
| Power Connector | 24 + 4 Pin |
| Dimension | 23.0 x 20.1 cm |
| การรับประกัน | 3 Years |
| Product Type | Mainboard |
|---|---|
| Brand | Asrock |
| Model | A520M/ac |
