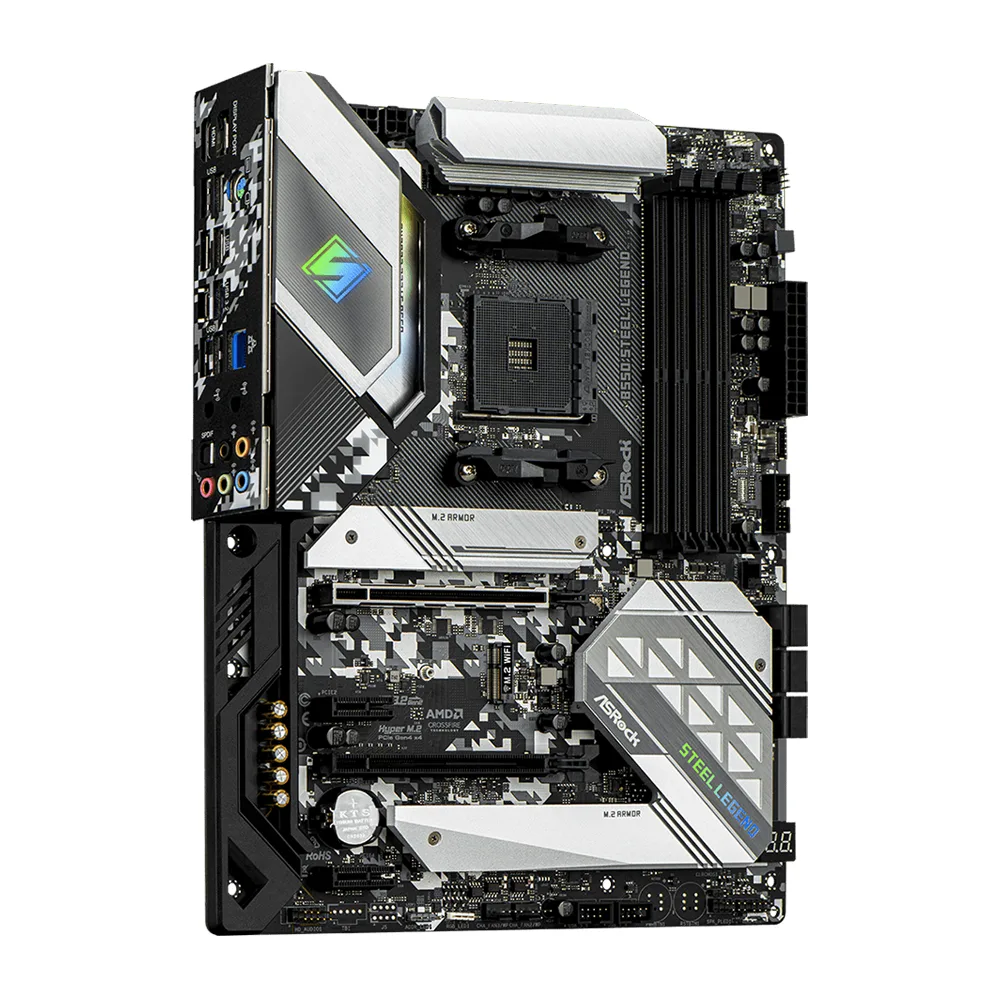

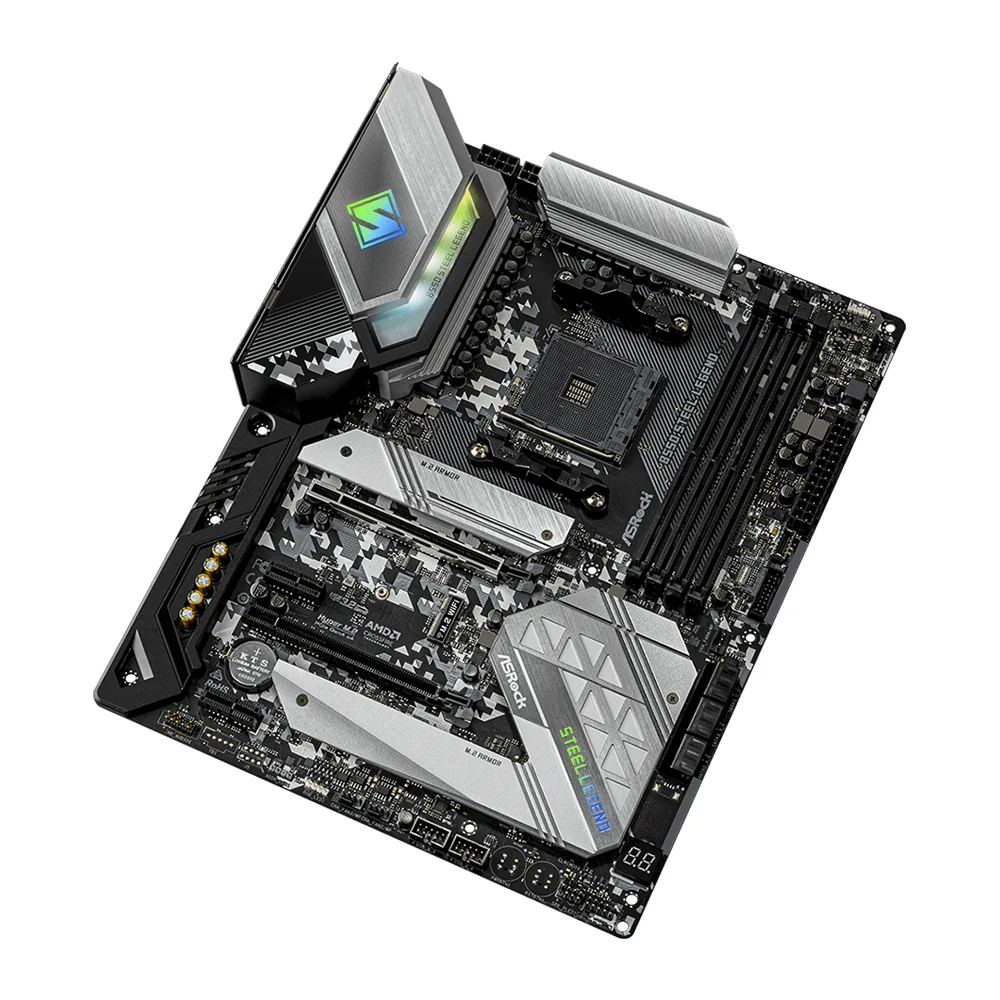

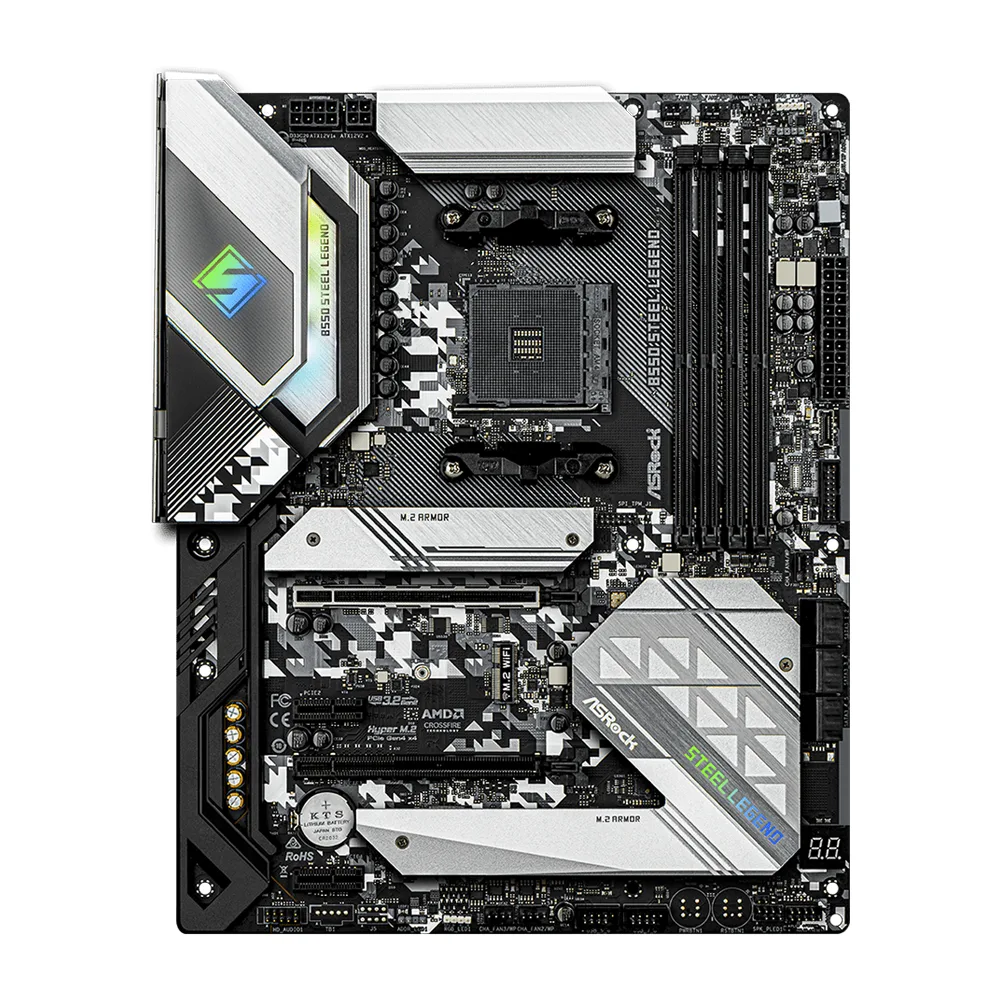

MAINBOARD (เมนบอร์ด) AM4 ASROCK B550 STEEL LEGEND

฿4,780.00

SKU: 201038090 Category: ASROCK

Product Type	Mainboard
Brand	Asrock
Model	B550 Steel Legend
Socket	AM4 (3000 G-Series – Picasso) , AM4 (3000 Series – Matisse) , AM4 (4000 G-Series – Renoir) , AM4 (4000 Series – Renoir) , AM4 (5000 G-Series – Cezanne) , AM4 (5000 Series – Vermeer / Cezanne)
Wattage	105W
Chipset	AMD B550
Series	Ryzen 3 , Ryzen 5 , Ryzen 7 , Ryzen 9
Slot	4
Memory Type	DDR4
Max. Capacity	128 GB
Speed	2133 , 2400 , 2666 , 2933 , 2933 (OC) , 3200 , 3200 (OC) , 3466 (OC) , 3600 (OC) , 3733 (OC) , 3800 (OC) , 3866 (OC) , 4000 (OC) , 4133 (OC) , 4200 (OC) , 4266 (OC) , 4333 (OC) , 4400 (OC) , 4466 (OC) , 4533 (OC) , 4600 (OC) , 4666 (OC) , 4733+ (OC)
Graphic	Integrated Graphics Processor (Depends on CPU)
Audio	Realtek ALC1220
Audio Detail	7.1 CH HD Audio
SATA 2	– Port
SATA 3	6 Port
RAID	Mon Jan 10 2000 00:00:00 GMT+0700 (GMT+07:00)
M.2	2 (1x PCIe, 1x PCIe & SATA) Port
Details	Supports AMD Quad CrossFireX™ and CrossFireX™
Slot	2 x PCIe 3.0 x1 Slots , 2 x PCIe 4.0 x16 Slot

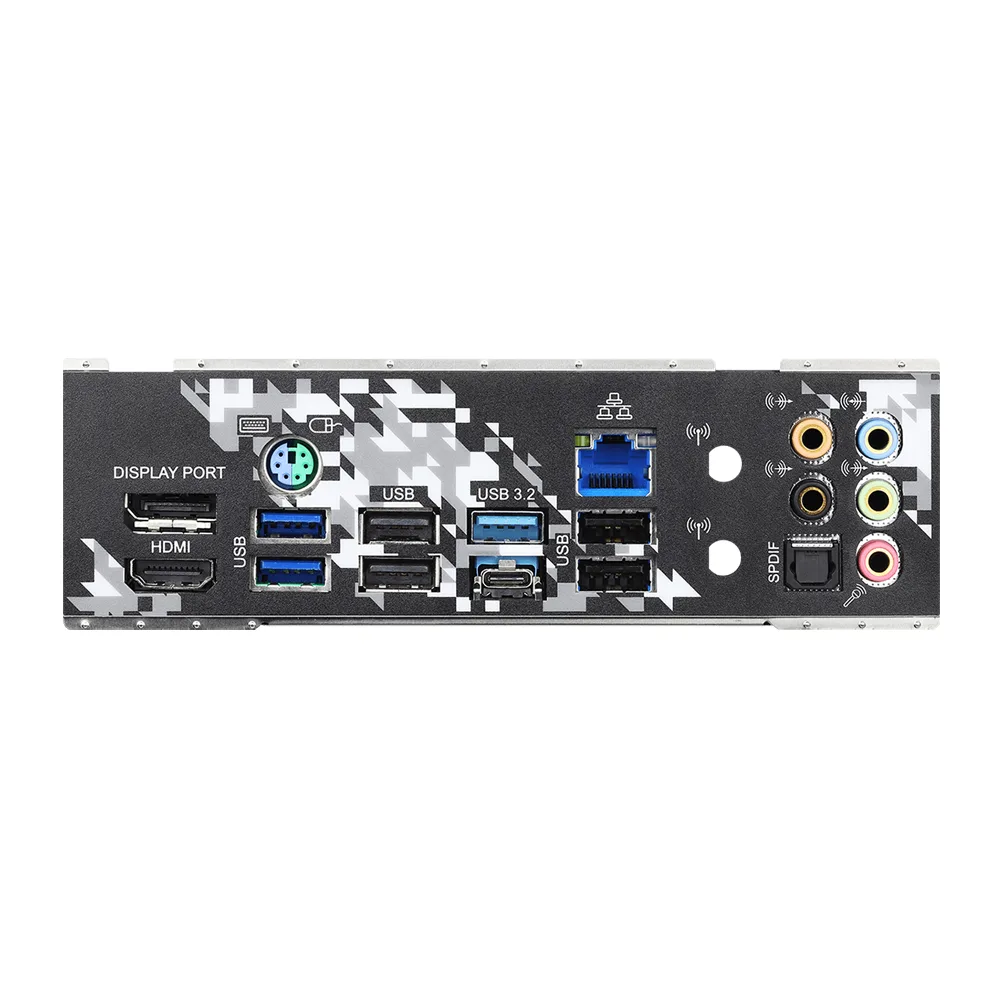

LAN	Dragon RTL8125BG
LAN Speed	100/1000/2500 Mbps
Wireless	no
USB 2.0	4 Port
USB 3.0	– Port
USB 3.1	– Port
Serial	– Port
USB 3.2	1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) 2 x USB 3.2 Gen1 Port
D-Sub (VGA)	– Port
DVI	– Port
HDMI	1 Port
DisplayPort	1 Port
Audio	5 x Audio jack 1 x Optical S/PDIF Out Port
PS/2	1 (Keyboard/Mouse combo) Port
Additional	2 x Antenna Mounting Points
LAN	1 Port
Form Factor	ATX
Power Connector	24+8+4 Pin
Dimension	30.5 x 24.4 cm
การรับประกัน	3 Years
