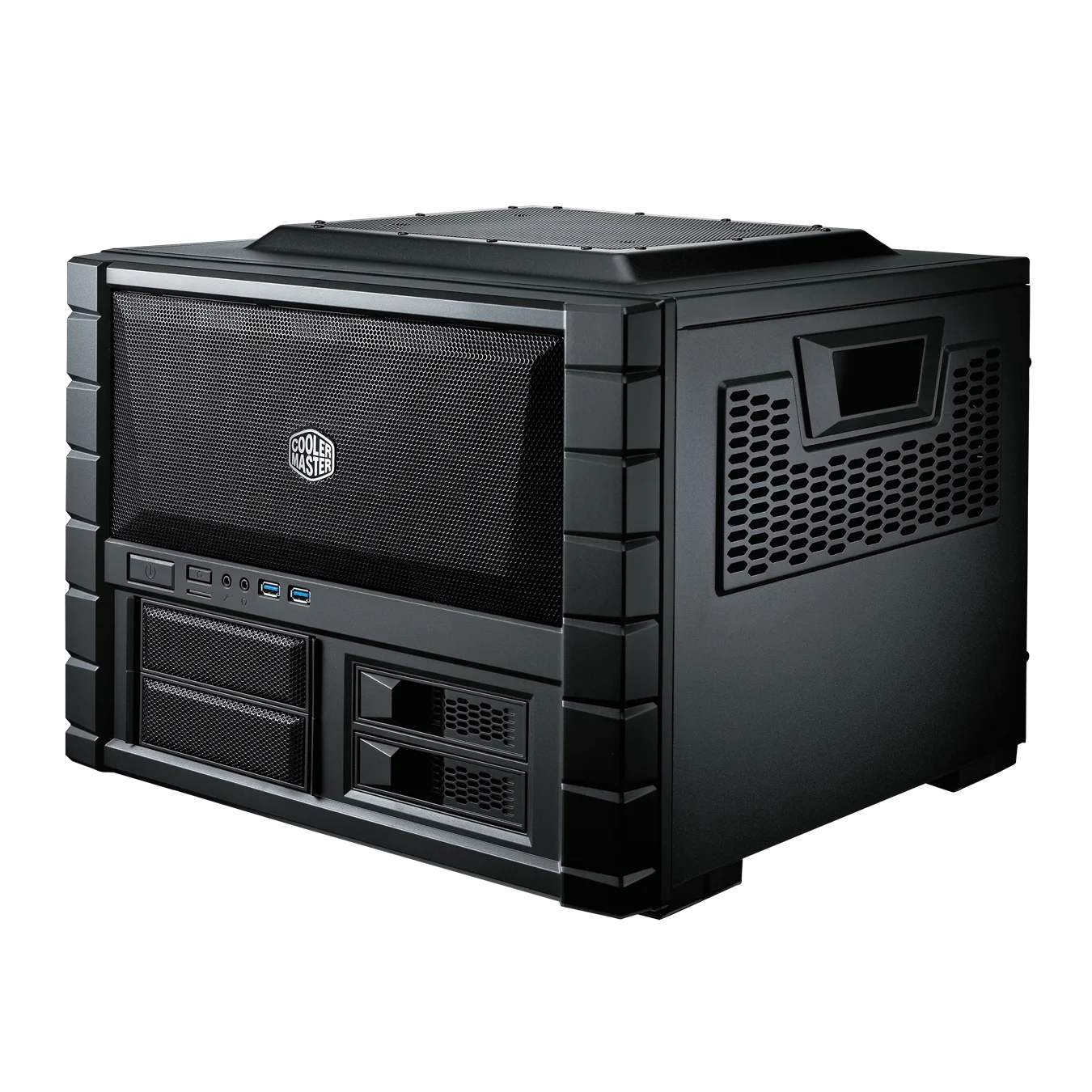

HAF XB EVO [RC-902XB-KKN2]

Model Number RC-902XB-KKN2 (mesh version)
Materials Steel, Polymer, mesh front bezel
Dimensions (L x W x H) 442 x 330 x 423 mm / 17.4 x 13 x 16.7 inch
Weight 8.2 kg / 18.1 lb
Motherboard Support ATX, Micro ATX, Mini ITX
5.25″ Drive Bays 2
3.5″ Drive Bays 4
2.5″ Drive Bays 4 (converted from 3.5″ drive bays)
I/O Panel 2x USB 3.0, Audio In & Out (Supports HD Audio)
Expansion Slots 7
Cooling Support – Top 1x 200mm Fan (Optional) – for Mesh Version (RC-902XB-KKN2) Only
Cooling Support – Front 2x 120mm XtraFlo Fan (Installed, 1200 RPM, 17 dBA), or 2x 140mm Fan (Optional)
Cooling Support – Rear 1x 120mm Fan or 2x 80mm Fan (Optional)
Liquid Cooling Support – Front 240mm radiator x 1 (optional) (Compatible with the Nepton 280L)
Liquid Cooling Support – Rear 120mm Radiator x 1 (Optional)
Power Supply Support Standard ATX PS2 (The max. length of PSU: 180mm / 7.1 inch)
Maximum Compatibility – VGA Card Length 334mm / 13.1 inch
Maximum Compatibility – CPU Cooler Height 180mm / 7.1 inch
Series HAF Series
