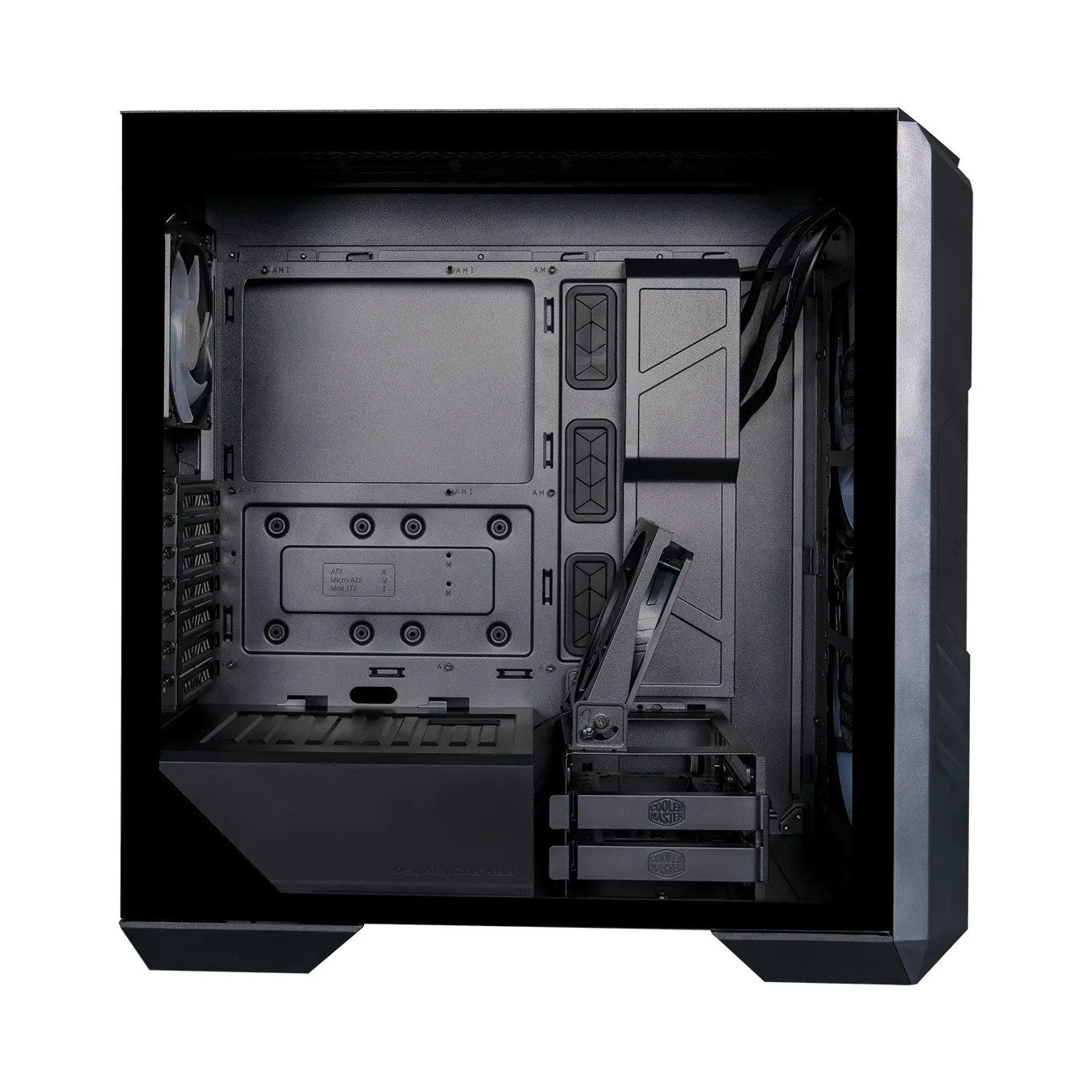

HAF 500 [H500-KGNN-S00]

Exterior Color Black
Materials – Outlook Steel, Mesh, Plastic
Materials – Side Panel Tempered Glass, Steel
Dimensions (L x W x H) 516 x 224 x 510mm (incl. Protrusions)
Motherboard Support ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12″ x 14.1″, may impact cable management and case features, remove cable cover and GPU fan bracket features)
Expansion Slots 7
5.25″ Drive Bays N/A
2.5″ / 3.5″ Drive Bays (Combo) 2
2.5″ Drive Bays 2
I/O Panel 2x USB 3.2 Gen 1 (formerly USB 3.0), 1x USB 3.2 Gen 2 Type-C, 1x single Audio Jack, 1x Reset/ARGB button
ARGB Controller ARGB Hub

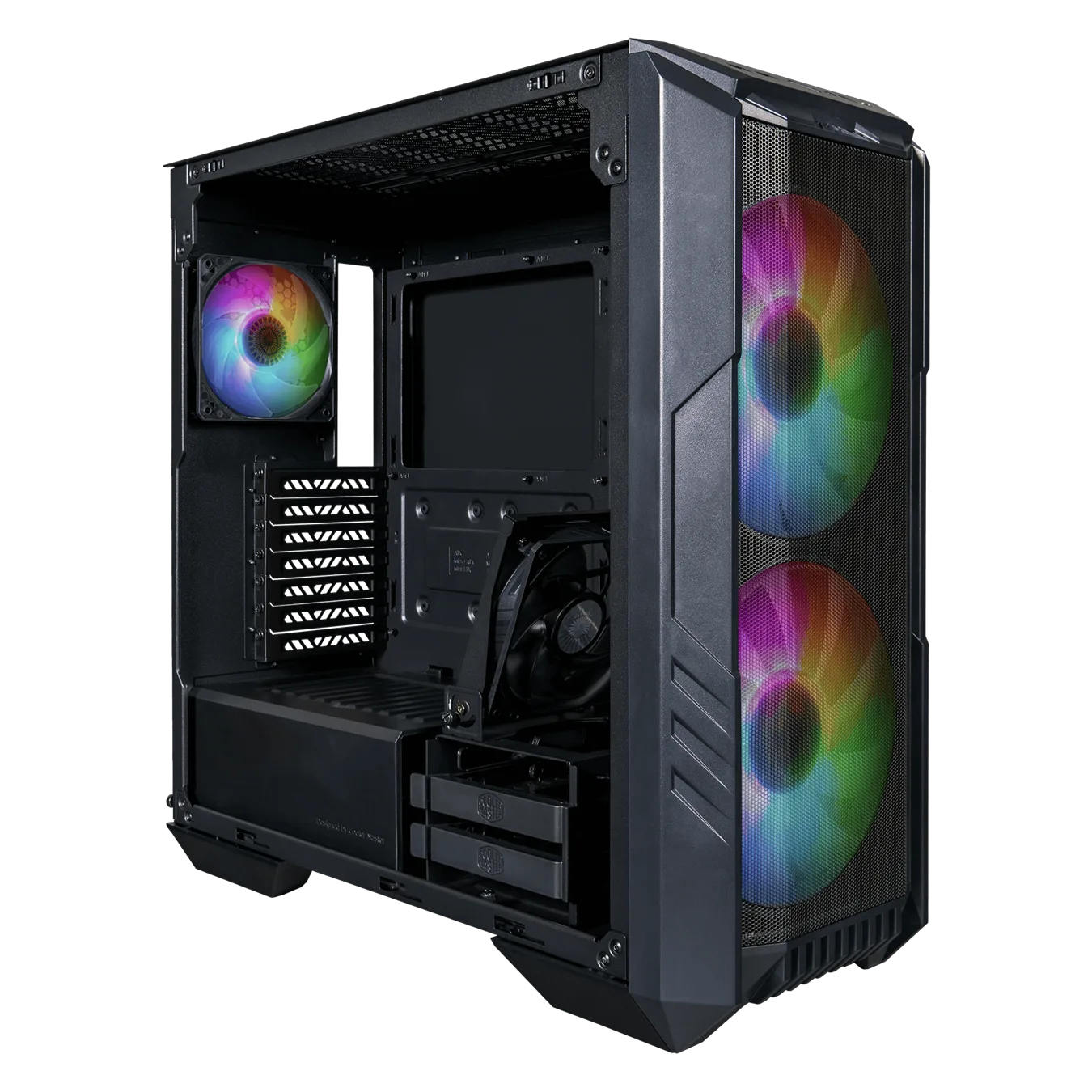

Pre-installed Fans – Front 2x 200mm ARGB Fan
Pre-installed Fans – Rear 1x 120mm SickleFlow PWM ARGB
Pre-installed Fans – Top on HDD cage 1x 120mm SickleFlow PWM (GPU Fan)
Fan Support – Top 3x 120mm, 2x 140mm, 2x 200mm
Fan Support – Front 3x 120mm, 2x 140mm, 2x 200mm, *200mm Mounting Hole Spacing 154 x 154 w/ up to 30mm thickness
Fan Support – Rear 1x 120mm
Fan Support – Top on HDD cage 1x 120mm
Radiator Support – Top 120mm, 140mm, 240mm, 280mm, 360mm
Radiator Support – Front 120mm, 140mm, 200mm, 240mm, 280mm, 360mm
Radiator Support – Rear 120mm
Clearance – CPU Cooler 167mm/6.5″
Clearance – PSU 180mm/7.1″
Clearance – GFX 410mm/16.1″
Cable Routing – Behind Motherboard Tray 30mm
Dust Filters Top, Bottom
Power Supply Support Bottom Mount, ATX
Warranty 2 years
Series HAF Series
Size Mid Tower
